Adjustable Air Amplifier™
Model 6042 2" (51mm) Adjustable Air
Amplifiers with swivel fittings cool inductively
heated axles prior to installing the hubs.
What Are Adjustable Air Amplifiers?
Back to Top
Adjustable Air Amplifiers have good amplification ratios and are very easy to use. The air gap is infinitely adjustable which regulates the consumption and outlet flow from a "breeze" to a "blast". They are available in aluminum or in stainless steel for food service, higher temperatures (400°F/204°C), and corrosive applications. High Temperature Stainless Steel Air Amplifiers for temperatures up to 700°F (374°C) are available. Please contact your distributor.
Force and flow for the Adjustable Air Amplifier is changed by turning the exhaust end (with the knurled ring loose) to open or close the continuous air gap. When desired performance is obtained, the knurled ring can be tightened to lock the flow at that setting. In most cases,
a .002" to .004" (.05mm to .10mm) air gap is ideal.
A series of Adjustable Air Amplifiers
dry and cool a large machined casting
as it exits a high temperature wash.
Adjustable Air Amplifiers and High
Velocity
Jets
dry an engine block
prior to assembly.
Adjustable Air Amplifiers are ducted to
draw clean air for drying.
Adjustable Air Amplifier Performance at 80 PSIG (5.5 BAR)
Back to Top
Metal parts are dried using a series of Model
6042 2" (51mm) Adjustable Air Amplifiers.
| Air Consumption | Amplification | Air Volume at outlet |
Air Volume at 6" (152mm) |
Sound Level |
||||
|---|---|---|---|---|---|---|---|---|
| MODEL | SCFM | SLPM | Ratio | SCFM | SLPM | SCFM | SLPM | dBA |
| 6030 6040 |
8.9 | 252 | 10 | 89 | 2430 | 267 | 7556 | 78 |
| 6031 6041 |
12.9 | 365 | 16 | 206 | 5635 | 618 | 17,489 | 81 |
| 6032 6042 |
21.5 | 608 | 20 | 430 | 11,739 | 1290 | 36,507 | 82 |
| 6033 6043 |
35.2 | 997 | 22 | 774 | 21,928 | 2323 | 65,784 | 83 |
| 6034 6044 |
50 | 1415 | 24 | 1200 | 33,960 | 3600 | 101,880 | 84 |
| Tested with .002" (0.05mm) gap setting |
How to Determine Adjustable Air Amplifier Total Ouput Flow And Air Consumption

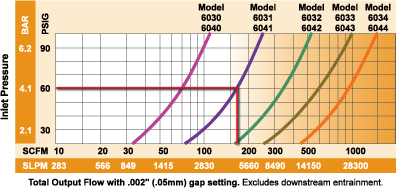

Total Airflow: From the performance curves (above), determine total output flow for any Adjustable Air Amplifier at any pressure.
Example: A Model 6031 at 60 PSIG (4.1 BAR) supply air pressure has a total output flow of 165 SCFM (4672 SLPM).
Air Consumption: Divide total output flow by the amplification ratio (shown in the table above) to determine air consumption for any Adjustable Air Amplifier at any air pressure.
In the example above, the Model 6031 at 60 PSIG (4.1 BAR) supply air pressure has a total output flow of 165 SCFM (4672 SLPM). Dviding this total flow by its amplification ratio of 16 gives an air consumption of 10.3 SCFM (292 SLPM).
Adjustable Air Amplifier Dimensions
Back to Top
| Adjustable Air Amplifier Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MODEL # | UOM | A | B | C | D | E | F | G | H | I |
| 6030 6040 |
in | 1.50 | 0.75 | 2.22 | 0.45 | 0.72 | 0.56 | 1.06 | 1.25 | 1/8 NPT |
| mm | 38 | 19 | 57 | 11 | 18 | 14 | 27 | 32 | ||
| 6031 6041 |
in | 2 | 1.25 | 2.88 | 0.84 | 1 | 0.75 | 1.38 | 1.75 | 1/4 NPT |
| mm | 51 | 32 | 73 | 21 | 25 | 19 | 35 | 44 | ||
| 6032 6042 |
in | 3.13 | 2 | 3.25 | 1.64 | 1.06 | 0.75 | 1.50 | 2.75 | 3/8 NPT |
| mm | 79 | 51 | 83 | 42 | 27 | 19 | 38 | 70 | ||
| 6033 6043 |
in | 4 | 3 | 4.06 | 2.20 | 1.22 | 1.25 | 1.83 | 3.50 | 1/2 NPT |
| mm | 102 | 76 | 103 | 56 | 31 | 32 | 46 | 89 | ||
| 6034 6044 |
in | 5 | 4 | 5 | 3.02 | 1.50 | 1.75 | 2.13 | 4.50 | 1/2 NPT |
| mm | 127 | 102 | 127 | 77 | 38 | 44 | 54 | 114 | ||
Airflow Pattern
Back to Top
| MODEL # | A | B | C | D | |
|---|---|---|---|---|---|
| 6030 6040 |
in | 1.50 | 2.40 | 4.20 | 6 |
| mm | 38 | 61 | 107 | 152 | |
| 6031 6041 |
in | 2 | 2.90 | 4.70 | 6.50 |
| mm | 51 | 74 | 119 | 165 | |
| 6032 6042 |
in | 2.50 | 3.40 | 5.20 | 7 |
| mm | 64 | 86 | 132 | 178 | |
| 6033 6043 |
in | 3.50 | 4.60 | 6.50 | 8 |
| mm | 89 | 117 | 165 | 203 | |
| 6034 6044 |
in | 5 | 5.80 | 7.40 | 9 |
| mm | 127 | 147 | 188 | 229 | |
Electronic Flow Control (EFC)
EXAIR's EFC is an electronic flow control that dramatically reduces compressed air costs by turning off the compressed air when no part is present. This minimizes compressed air use for blow off, drying, cooling, conveying and static elimination operations. The EFC combines a photoelectric sensor with a timing control that limits compressed air use by turning it off when no part is present. Visit the EFC page for more information.
Models
Back to Top
BSP Threads Available - Contact Distributor
| Aluminum Adjustable Air Amplifier | |
|---|---|
| Models | Description |
| 6040 | 3/4" (19mm) Aluminum Adjustable Air Amplifier |
| 6041 | 1-1/4" (32mm) Aluminum Adjustable Air Amplifier |
| 6042 | 2" (51mm) Aluminum Adjustable Air Amplifier |
| 6043 | 3" (76mm) Aluminum Adjustable Air Amplifier |
| 6044 | 4" (102mm) Aluminum Adjustable Air Amplifier |
| Stainless Steel Adjustable Air Amplifier | |
|---|---|
| Models | Description |
| 6030 | 3/4" (19mm) Stainless Steel Adjustable Air Amplifier |
| 6031 | 1-1/4" (32mm) Stainless Steel Adjustable Air Amplifier |
| 6032 | 2" (51mm) Stainless Steel Adjustable Air Amplifier |
| 6033 | 3" (76mm) Stainless Steel Adjustable Air Amplifier |
| 6034 | 4" (102mm) Stainless Steel Adjustable Air Amplifier |
| Accessories | |
|---|---|
| Models | Description |
| 9001 | Auto Drain Filter Separator, 3/8 NPT, 65 SCFM (1841 SLPM) |
| 9032 | Auto Drain Filter Separator, 1/2 NPT, 90 SCFM (2547 SLPM) |
| 9002 | Auto Drain Filter Separator, 3/4 NPT, 220 SCFM (6230 SLPM) |
| 9005 | Oil Removal Filter, 3/8 NPT, 15-37 SCFM (425-1048 SLPM) |
| 9006 | Oil Removal Filter, 3/4 NPT, 50-150 SCFM (1415-4248 SLPM) |
| 9008 | Pressure Regulator with Gauge, 1/4 NPT, 50 SCFM (1416 SLPM) |
| 9033 | Pressure Regulator with Gauge, 1/2 NPT, 100 SCFM (2830 SLPM) |
| 9009 | Pressure Regulator with Gauge, 3/4 NPT, 220 SCFM (6230 SLPM) |
