Standard Air Wipe™
This hard-hitting 360° ring of airflow is the economical way to blowoff, dry, clean and cool.
What is the Standard Air Wipe?
Back To Top
EXAIR's Standard Air Wipe provides a uniform 360° airstream that is ideal for blowoff, drying, cleaning and cooling of pipe, cable, extruded shapes, hose, wire and more. The split design offers easy clamping around the surface of the material moving through it, eliminating the need for threading. All models include painted screws and plastic shims. Reinforced rubber hose is also included on sizes up to 4" (102mm) for added corrosion and heat resistance. Standard Air Wipe models are rated for temperatures up to 150°F (66°C).
The Standard Air Wipe removes liquid
from a plastic rod.
Why The Standard Air Wipe?
Back To Top
Prior to the introduction of the Standard Air Wipe, the only way to blowoff, dry, clean and cool these surfaces was to use a ring of air nozzles. The high air consumption and noise levels of the nozzles along with inconsistent air velocity often delivered poor results. The Standard Air Wipe provides a high volume, high velocity airflow that is uniformly ejected from the 360° of its inner diameter. Velocity can be varied from a "blast" to a "breeze". Air consumption and noise are low.
The Standard Air Wipe blows coolant off
the part and back into the centerless grinder.
Applications
Back To Top
- Drying after wash, cleaning, plating or coating
- Blowoff dust and contaminants
- Cool hot extruded shapes
- Uniformly wipe surfaces
- Dry extruded profiles, rod and medical tubing
- Eliminate solution carry - no cross contamination
- Blow excess water from automotive door gaskets
- Remove excess coatings, water and oil
- Dry tube, hose, wire, fiber optics
- Minimize solution loss due to dragout
- Clean paint gun tips
- Dry screen printed or ink jetted surfaces
- Clean strips and ribbon
A Model 2431 1" (25mm) Standard Air Wipe
blows off the excess coating from a wire
into a dip tank.
Advantages
Back To Top
- Quiet
- Low air consumption
- Uniform airflow across the entire diameter
- No electricity, no moving parts
- Non-contact - no wiper blade
- Lightweight, low profile
- Tapped holes for mounting
- Split design - compact, rugged, easy to install
- Meets OSHA maximum dead end pressure and noise requirements

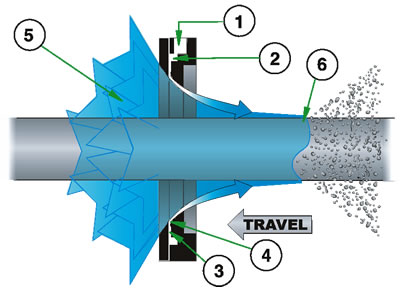

Compressed air flows through an inlet (1) of the Standard Air Wipe into an annular chamber (2). It is then throttled through a small ring nozzle (3) at high velocity. This primary airstream adheres to the coanda profile (4), which directs it down the angled surface of the Standard Air Wipe. A low pressure area is created at the center (5) inducing a high volume flow of surrounding air into the primary airstream. As the airflow leaves the Standard Air Wipe, it creates a conical 360° ring of air that attaches itself to the surface of the material running through it (6), uniformly wiping the entire surface with the high velocity airflow.
Standard Air Wipe Performance
Back To Top
with .002" (.05mm) thick shim installed
| 80 PSIG (5.5 BAR) |
Air Consumption | Sound Level @ 3' (914mm) |
|
|---|---|---|---|
| MODEL | SCFM | SLPM | dBA |
| 2430 | 13.9 | 394 | 75 |
| 2431 | 19.1 | 541 | 76 |
| 2432 | 29.5 | 835 | 77 |
| 2433 | 39.8 | 1,127 | 79 |
| 2434 | 50.2 | 1,422 | 81 |
| 2435 | 60.6 | 1,716 | 82 |
| 2436 | 71.0 | 2,010 | 84 |
| 2437 | 81.3 | 2,302 | 85 |
| 2439 | 102.1 | 2,891 | 87 |
| 2441 | 122.8 | 3,477 | 89 |

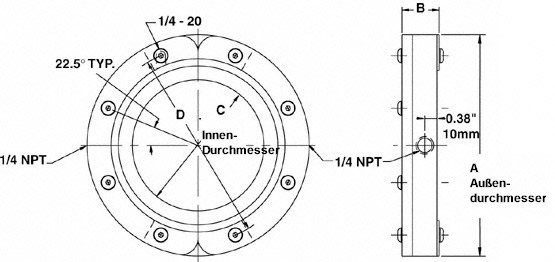

Dimensions
Back To Top
| Standard Air Wipe Dimensions | |||||
|---|---|---|---|---|---|
| MODEL # | A | B | C | D | |
| 2430 | in | 3.25 | 1.13 | 0.05 | 2.5 |
| mm | 83 | 29 | 13 | 64 | |
| 2431 | in | 3.75 | 1.13 | 1.0 | 2.95 |
| mm | 95 | 29 | 25 | 75 | |
| 2432 | in | 4.75 | 1.13 | 2.0 | 3.95 |
| mm | 121 | 29 | 51 | 100 | |
| 2433 | in | 5.75 | 1.13 | 3.0 | 4.95 |
| mm | 146 | 29 | 78 | 126 | |
| 2434 | in | 6.75 | 1.13 | 4.0 | 5.95 |
| mm | 172 | 29 | 102 | 151 | |
| 2435 | in | 7.75 | 1.13 | 5.0 | 6.95 |
| mm | 197 | 29 | 127 | 176 | |
| 2436 | in | 8.75 | 1.13 | 6.0 | 7.95 |
| mm | 222 | 29 | 152 | 202 | |
| 2437 | in | 9.75 | 1.13 | 7.0 | 8.95 |
| mm | 248 | 29 | 178 | 227 | |
| 2439 | in | 11.75 | 1.13 | 9.0 | 10.95 |
| mm | 299 | 29 | 229 | 278 | |
| 2441 | in | 13.75 | 1.13 | 11.0 | 12.95 |
| mm | 349 | 29 | 279 | 329 | |
Standard Air Wipe Specifications
Back To Top
The Standard Air Wipe is available in 10 sizes from stock.
The Standard Air Wipe is available with throat diameters (I.D.) of 1/2", 1", 2", 3", 4", 5", 6", 7", 9", and 11" (13, 25, 51, 76, 102, 127, 152, 178, 229, and 279mm). Special diameters are available.
Compressed Air Inlets: The Standard Air Wipe has compressed air inlets on each half. General purpose compressed air hose is supplied with sizes up to 4" (102mm) that couples the air supply of one half to the other. Sizes 9" (229mm) and larger have two inlets on each half that must be supplied with compressed air to maintain uniform airflow.
Filtration: The use of clean air is essential. Kits include an automatic drain filter with a 5 micron filter element that is sized properly for flow.
Materials of Construction: The Standard Air Wipe is constructed of aluminum. All models use painted screws and plastic shims. General purpose PVC air hose is included with sizes up to 4" (102mm).
Temperature: The Standard Air Wipe is rated for temperatures up to 150°F (66°C).
Mounting: The Standard Air Wipe can be supported by the compressed air supply pipe. Tapped holes (1/4-20) on the bottom of the Standard Air Wipe can also be used for mounting.
Regulation: A pressure regulator on the compressed air supply provides infinite control of flow, force and air consumption. Kits include a pressure regulator that is sized properly for flow.
Shim Sets: The Standard Air Wipe has a .002" (.05mm) gap setting. The compressed air exhausts through a gap which is set with a plastic shim positioned between the cap and body of the Standard Air Wipe. Force and flow through the Standard Air Wipe may be easily increased by adding shims to open the gap.
Models
Back To Top
BSP Threads Available - Contact Distributor
| Standard Air Wipe Only | |
|---|---|
| Model # | Description |
| 2430 | 1/2" (13mm) Standard Air Wipe Only |
| 2431 | 1" (25mm) Standard Air Wipe Only |
| 2432 | 2" (51mm) Standard Air Wipe Only |
| 2433 | 3" (76mm) Standard Air Wipe Only |
| 2434 | 4" (102mm) Standard Air Wipe Only |
| 2435 | 5" (127mm) Standard Air Wipe Only |
| 2436 | 6" (152mm) Standard Air Wipe Only |
| 2437 | 7" (178mm) Standard Air Wipe Only |
| 2439 | 9" (229mm) Standard Air Wipe Only |
| 2441 | 11" (279mm) Standard Air Wipe Only |
| Standard Air Wipe Shim Sets | |
|---|---|
| Model # | Description |
| 2350 | 1/2" (13mm) Standard Air Wipe Shim Set |
| 2351 | 1" (25mm) Standard Air Wipe Shim Set |
| 2352 | 2" (51mm) Standard Air Wipe Shim Set |
| 2353 | 3" (76mm) Standard Air Wipe Shim Set |
| 2354 | 4" (102mm) Standard Air Wipe Shim Set |
| 2355 | 5" (127mm) Standard Air Wipe Shim Set |
| 2356 | 6" (152mm) Standard Air Wipe Shim Set |
| 2357 | 7" (178mm) Standard Air Wipe Shim Set |
| 2359 | 9" (229mm) Standard Air Wipe Shim Set |
| 2361 | 11" (279mm) Standard Air Wipe Shim Set |
| Shim Sets include (1) each of a .001" (.03mm), .003" (.08mm), .004" (.10mm) thick plastic shim |
| Accessories | |
|---|---|
| Model # | Description |
| 9001 | Automatic Drain Filter Separator, 3/8 NPT, 65 SCFM (1841 SLPM) |
| 9032 | Automatic Drain Filter Separator, 1/2 NPT, 90 SCFM (2548 SLPM) |
| 9002 | Automatic Drain Filter Separator, 3/4 NPT, 220 SCFM (6230 SLPM) |
| 9005 | Oil Removal Filter, 3/8 NPT, 15-37 SCFM (425-1048 SLPM) |
| 9006 | Oil Removal Filter, 3/4 NPT, 50-150 SCFM (1415-4248 SLPM) |
| 9008 | Pressure Regulator with Gauge, 1/4 NPT, 50 SCFM (1416 SLPM) |
| 9033 | Pressure Regulator with Gauge, 1/2 NPT, 100 SCFM (2832 SLPM) |
| 9009 | Pressure Regulator with Gauge, 3/4 NPT, 220 SCFM (6230 SLPM) |
| 9020 | Solenoid Valve, 120V, 50/60Hz, 1/4NPT, 40 SCFM (1133 SLPM) |
| 9021 | Solenoid Valve Only, 200-240V, 50/60Hz, 1/4 NPT, 40 SCFM (1133 SLPM) |
| 9034 | Solenoid Valve, 120V, 50/60Hz, 1/2 NPT, 100 SCFM (2832 SLPM) |
| 9035 | Medium Solenoid Valve, 240V, 50/60Hz, 1/2 NPT, 100 SCFM (2832 SLPM) |
| 9036 | Solenoid Valve, 120V, 50/60Hz, 3/4 NPT, 200 SCFM (5664 SLPM) |
| 9037 | Large Solenoid Valve, 240V, 50/60Hz, 3/4 NPT, 200 SCFM (5664 SLPM) |
