Window Blowoff

Air Disk™ & Air Stik™

Keep the window of your machine clear of coolants!

View the part and the process at all times!

The Model 6202 Air Stik™ Window Blowoff
blows down the surface of the glass with a
quiet, high velocity sheet of air.

What is The Window Blowoff?

EXAIR's Window Blowoff Systems give the machine operator a clear view of the part and the machining operation when coolants or cutting fluids are used. The machinist can then make decisions affecting the part and process, resulting in faster machine set up and increased productivity. Tool damage and unnecessary downtime can be eliminated.

Air Disk window blowoff for closed top machines

When compressed air is turned on, the part
and process remain visible.

Why the Window Blowoff?

To keep up with the constantly increasing feeds and speeds of today's machine tools, high volumes of flood coolant must be used. As a result, a heavy coolant spray is often thrown against the window that eliminates visibility of the part and the machining process. The Window Blowoff gives an unobstructed view to the inside of the machine.

Air Stik or Air Disk

The Air Stik is ideal for open or closed top machines. It provides a directed, high velocity sheet of air to blow down the surface of the window. The Air Disk works best in closed top machines. Using EXAIR's patented* airflow technology, the Air Disk Window Blowoff provides a 360° airstream that blows outward from the center of the window.

*Patent #5402938

Advantages

Low Cost
Faster set up and part tests
Reduce machine damage
Avoid Costly mistakes
Increase productivity
Reduce downtime and tool damage
Monitor tool life for replacement - reduce part rejects
No mechanical wiper to scratch the window
"On/off" control saves compressed air

No electricity
No moving parts to wear out
Quiet
Includes push fittings and valve
Easy installation
Lightweight, low profile
Adhesive bond - no holes in the window
Amplifies airflow to minimize compressed air use

Window Blowoff Specifications

Pressure Supply 80 PSIG (5.5 BAR)		Air Consumption
Model	Description	SCFM	SLPM
6200	Air Disk (CT)	17	481
6201	Air Stik (CT)	20	577
6202	Air Stik (OT)	20	577

Review the dimensions of the Air Stik or Air Disk to determine if there is proper clearance between the sliding door and the frame of your machine.

Warning: Compressed air must be turned off before opening the door of the machine to prevent airborne coolant from contacting the operator.

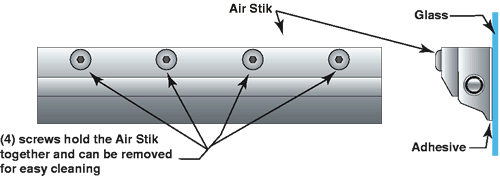

The Air Disk and Air Stik come with all the necessary connections for fast, easy set up. The compact design permits mounting in the machines that are fitted with bars or grills that protect the window. A strong adhesive bonds the unit to the glass or polycarbonate. A shutoff valve giving the operator "on/off" control makes it easy to increase the air velocity when there is a high volume of coolant on the window. An optional solenoid valve can be wired into the machine control to limit the operation to only those times when the coolant is being used, or activated by using a special code in the program.
