Ion Air Jet™
Mountable version of our Ion Air Gun is an effective spot cleaner!

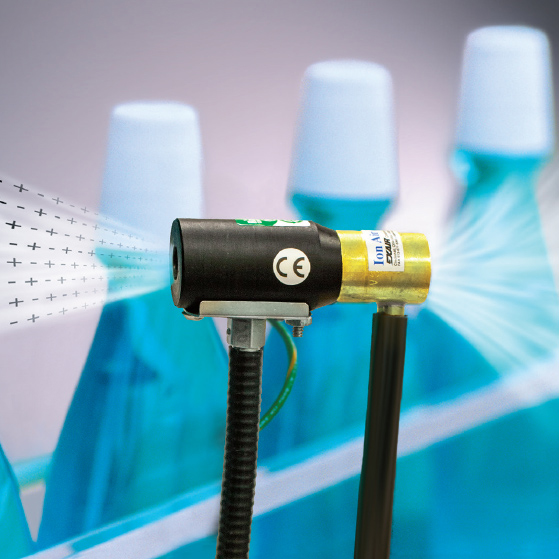

The Model 7294 Ion Air Jet and Power
Supply neutralize and clean mouthwash
bottles before installing the tamper-proof
seal.
What Is an Ion Air Jet?
Back To Top
EXAIR's Ion Air Jet delivers a concentrated airflow that can cover a precise spot without disturbing other areas. This quiet, focused airstream provides incredibly fast static decay rates and cleaning ability. The Ion Air Jet is the ideal way to remove static and dust from small parts prior to shrink wrapping, packaging, printing, painting or finishing.
Why The Ion Air Jet?
Back To Top
The Ion Air Jet induces surrounding airflow at a ratio of 5:1, minimizing compressed air use and maximizing ionized airflow. Force can be adjusted from a "blast" to a "breeze".
The optional Model 9060 Foot Pedal
provides convenient hands free operation.
Your Choice Of Permanent Mount or Flexible Stay Set Hose
For permanent mount applications, the compact Ion Air Jet is the best choice since it is lightweight and easy to install using the 1/8 NPT male inlet. For applications where frequent repositioning is required, the flexible Stay Set Ion Air Jet is ideal. This version can be placed in close proximity and the hose bent to aim the ionized airstream at the localized area. Since the hose has "memory" it will not creep or bend, always keeping the aim until physically
moved to the next position.
The Stay Set Ion Air Jet comes complete with a magnetic base that allows easy mounting and portability on a machine, a bench or other surface. A shutoff valve on the base provides infinite control of the force and flow. For hands free operation, an optional Model 9040 Foot Pedal (requires floor or machine mounting) is available.
The Model 7494-9362 Stay Set Ion Air Jet
Kit cleans dust from a glass lens prior to
installation on a gauge.
Applications
Back To Top
- 3-D Parts
- Bottle cleaning
- Printer surfaces
- Part cleaning
Advantages
Back To Top
- Low cost
- Rapid static decay
- Quiet
- Shockless, non-radioactive
Performance
Back To Top
| Pressure Supply | Air Consumption | Sound Level | Dissipates 5kV* | ||
|---|---|---|---|---|---|
| PSIG | BAR | SCFM | SLPM | dBA | Seconds |
| 20 | 1.4 | 7.4 | 209 | 67 | 0.45 |
| 40 | 2.8 | 11.5 | 325 | 74 | 0.33 |
| 60 | 4.1 | 15.8 | 447 | 79 | 0.24 |
| 80 | 5.5 | 22 | 622 | 82 | 0.18 |
| 100 | 6.9 | 24 | 679 | 85 | 0.18 |
| * 6" (152mm) from target |
How The Ion Air Jet Works
Back To Top
The Ion Air Jet incorporates a High Velocity Air Jet and electrically energized emitter point. A small amount of compressed air is injected into the air jet (1) inducing a high volume flow of surrounding air (2) to pass through it. The emitter point (shockless) at the discharge end of the jet (3) ionizes the entire airstream. The result is a high volume flow of ionized air (4) capable of neutralizing high static charges in fractions of a second. An optional filter and regulator cleans the compressed air and allows infinite adjustment of airflow and velocity.
Electronic Flow Control (EFC)
EXAIR's EFC is an electronic flow control that dramatically reduces compressed air costs by turning off the compressed air when no part is present. This minimizes compressed air use for blow off, drying, cooling, conveying and static elimination operations. The EFC combines a photoelectric sensor with a timing control that limits compressed air use by turning it off when no part is present. Visit the EFC Page for more information.
Models
Back to Top
BSP Threads Available - Contact Distributor
| Model # | Description |
|---|---|
| 7194 | Ion Air Jet includes 5' (1.5m) of shielded cable* |
| 7494 | Ion Air Jet includes Power Supply, filter and pressure regulator |
| * For special length cables, please contact distributor. |
| Model # | Description |
|---|---|
| 7194-9362 | Stay Set Ion Air Jet includes 5' (1.5m) shielded cable*, one outlet magnetic base with shutoff valve and 12" (305mm) Stay Set Hose |
| 7494-9362 | Stay Set Ion Air Jet Kit includes Stay Set Ion Air Jet, Model 7901 Power Supply, filter and pressure regulator |
| 7495-9362 | Deluxe Stay Set Ion Air Jet Kit includes Stay Set Ion Air Jet, Model 7901 Power Supply, filter, pressure regulator, foot pedal and 10' (3m) hose |
| 7910 | Instant Static Eliminating Blowoff Station includes Stay Set Ion Air Jet, Model 7901 Power Supply, foot pedal and (2) 10' (3m) hoses |
Accessories and Components
Back To Top
| Model # | Description |
|---|---|
| 7901 | Power Supply Only (115V, 50/60 Hz), 2 Outlets |
| 7907 | Power Supply Only (230V, 50/60 Hz), 2 Outlets |
| 7940 | Power Supply Only (115V, 50/60 Hz), 4 Outlets |
| 7941 | Power Supply Only (230V, 50/60 Hz), 4 Outlets |
| 7905 | Static Meter |
| 9040 | Foot Pedal, 1/4 NPT, 60 SCFM (1698 SLPM) |
EXAIR Model 7901 or 7907 Power Supply (5 kV) is required for operation.
For use with 5 kVrms, 5 milliamperes (max.) power supply, Model 7901 (115V) or 7907 (230V). Power Supplies are UL Listed to U.S. and Canadian safety standards. (Also available with 4 Outlets - Model 7940 or Model 7941.)
