Ionizing Point™
Single point ionizer for spot neutralization!
What Is The Ionizing Point?
Back To Top

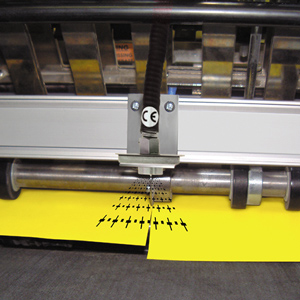

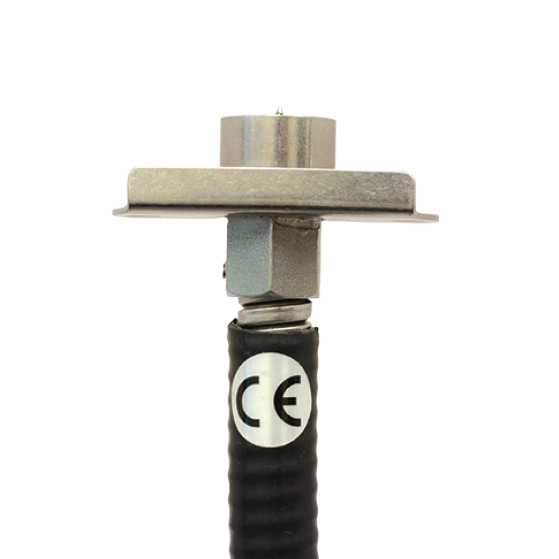

EXAIR's Ionizing Point is a compact, single point ionizer ideal for winding, rewinding or slitting operations. It can also be mounted through a duct to neutralize static charges due to moving air or materials.
The shockless Ionizing Point delivers a high concentration of positive and negative ions for fast static decay. It can neutralize any surface within 2" (51mm).
Performance
Back To Top
| Distance From Charged Surface | |||
|---|---|---|---|
| 0.50" (13mm) | 1" (25mm) | 2" (51mm) | |
| Dissipates 5kV*(Seconds) | 0.12 | 0.18 | 0.24 |
Models
Back to Top
BSP Threads Available - Contact Distributor
| Model # | Description |
|---|---|
| 7199 | Ionizing Point includes 5' (1.52m) shielded cable* |
| * For special length cables, please contact your distributor |
Accessories and Components
Back To Top
| Model # | Description |
|---|---|
| 7901 | Power Supply Only (115V, 50/60 Hz), 2 Outlets |
| 7907 | Power Supply Only (230V, 50/60 Hz), 2 Outlets |
| 7940 | Power Supply Only (115V, 50/60 Hz), 4 Outlets |
| 7941 | Power Supply Only (230V, 50/60 Hz), 4 Outlets |
| 7902 | Extension Cable, 5' (1.52m) length |
| 7905 | Static Meter |
EXAIR Model 7901 or 7907 Power Supply (5 kV) is required for operation.
For use with 5 kVrms, 5 milliamperes (max.) power supply, Model 7901 (115V) or 7907 (230V). Power Supplies are UL Listed to U.S. and Canadian safety standards. (Also available with 4 Outlets - Model 7940 or Model 7941.)
Ionizing Points are UL Component Recognized to U.S. and Canadian Standards.
Installation and Maintenance Sheets
Back To Top
These files are in the Adobe .PDF format.
The viewer is free and is available at
www.adobe.com.
Ionizing Point
Power Supply - 2 Outlet
Power Supply - 4 Outlet
