Heavy Duty Line Vac™
Our most powerful Line Vac moves high volumes of material and resists wear!
The hardened alloy construction resists wear
and conveys over longer distances. New
threaded models are available.
What Is The Heavy Duty Line Vac?
Back To Top
The Heavy Duty Line Vac is EXAIR's most powerful conveyor. The appearance is similar to the standard Line Vac but performance has been boosted dramatically. The Heavy Duty Line Vac has been engineered to convey materials over longer vertical and horizontal distances. The hardened alloy construction helps prevent premature wear that could occur with ordinary aluminum or stainless steel Line Vacs.
Heavy Duty Line Vacs are available in five sizes:
3/4" (19mm), 1" (25mm), 1 1/4" (32mm),
1 1/2" (38mm) and 2" (51mm).
Metal parts are conveyed with the Model
150200 2" (51mm) Heavy Duty Line Vac
as they drop off the edge of the conveyor.
Why The Heavy Duty Line Vac?
Back To Top
Many applications require the materials be transported over longer distance. The Heavy Duty Line Vac can move more material over longer lengths. They have been designed for rugged, industrial applications.
The table below gives a quick comparison of our Light Duty Line Vac, standard Line Vac, and the Heavy Duty Line Vac models. For comparison, the test shows the 2" (51mm) model of each style conveying the same material over various lengths. Heavy Duty Line Vac conveys more material in less time.
| Rock Salt Conveying Rate Comparison | ||
|---|---|---|
| 100 Feet (30.5m) | 200 Feet (61m) | |
Model 130200 2" (51mm) Light Duty Line Vac |
166 lbs/hr. (75.3 kg/hr.) | N/A |
Model 6084 2" (51mm) Line Vac |
334 lbs/hr. (151.5 kg/hr.) | 85 lbs/hr. (38.6 kg/hr.) |
Model 150200 2" (51mm) Heavy Duty Line Vac |
524 lbs/hr. (237.7 kg/hr.) | 200 lbs/hr. (90.7 kg/hr.) |
Horizontal conveying tested at 80 PSIG (5.5 BAR)
An automotive manufacturer vacuums
chips from drive train differentials with
a Model 150200 2" (51mm) Heavy Duty
Line Vac.
Applications
Back To Top
- Hopper loading
- Fiber tensioning
- Material conveying
- Waste/trim removal
- Chip removal
- Part transfer
- Filling operations
Advantages
Back To Top
- Hardened alloy construction
- Highest throughput capability
- Compact
- Quiet
- No moving parts
- Fits standard hose or tube
- Available from stock

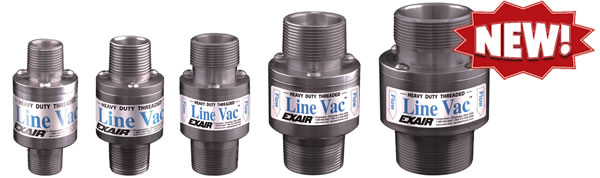

Heavy Duty Threaded Line Vac
Back To Top
EXAIR's new Heavy Duty Threaded Line Vac air operated conveyors convert ordinary pipe into a powerful conveying system for parts, scrap, trim and other bulk materials. The engineered Heavy Duty Threaded Line Vac attaches easily to ordinary NPT pipe and fittings available from any home center, hardware store or plumbers supply. With its hardened alloy construction, the Threaded Heavy Duty Line Vac withstands premature wear which could occur with aluminum and stainless steel.
| Models | Hose Size | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150075 | in | .75 | .50 | 1.88 | 3.88 | 1.88 | 1 | 2 | 1 | .76 | 1.52 | .25 | 1.38 | .06 | 1.44 | .20 | 1/4 NPT |
| mm | 19 | 13 | 48 | 99 | 48 | 25 | 51 | 25 | 19 | 39 | 6 | 35 | 2 | 37 | 5 | ||
| 150100 | in | 1 | .75 | 2.13 | 3.88 | 1.88 | 1 | 2 | 1 | .65 | 1.3 | .26 | 1.32 | .06 | 1.56 | .20 | 1/4 NPT |
| mm | 25 | 19 | 54 | 99 | 48 | 25 | 51 | 25 | 17 | 33 | 7 | 34 | 2 | 40 | 5 | ||
| 150125 | in | 1.25 | 1 | 2.38 | 3.88 | 1.88 | 1 | 2.5 | 1.25 | 1 | 2 | .31 | 1.61 | .06 | 1.68 | .28 | 1/4 NPT |
| mm | 32 | 25 | 61 | 99 | 48 | 25 | 64 | 32 | 25 | 51 | 8 | 41 | 2 | 43 | 7 | ||
| 150150 | in | 1.50 | 1.25 | 2.75 | 4.38 | 2.13 | 1.25 | 2.5 | 1.25 | .86 | 1.73 | .25 | 1.44 | .06 | 1.88 | .28 | 3/8 NPT |
| mm | 38 | 32 | 70 | 111 | 54 | 32 | 64 | 32 | 22 | 44 | 6 | 37 | 2 | 48 | 7 | ||
| 150200 | in | 2 | 1.75 | 3.25 | 4.38 | 2.13 | 1.25 | 3 | 1.5 | 1.17 | 2.34 | .28 | 1.48 | .06 | 2.13 | .28 | 3/8 NPT |
| mm | 51 | 45 | 83 | 111 | 54 | 32 | 76 | 38 | 30 | 59 | 7 | 38 | 2 | 54 | 7 |
Heavy Duty Threaded Line Vac Dimensions
Back To Top
| Heavy Duty Model | A (Pipe Size Inches) | UOM | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 151075 | 3/4 NPT | in | .50 | 1.88 | 3.88 | 1.88 | 1 | 2 | 1 | .76 | 1.52 | .25 | 1.38 | .06 | 1.44 | .20 | 1/4 NPT |
| mm | 13 | 48 | 99 | 48 | 25 | 51 | 25 | 19 | 39 | 6 | 35 | 2 | 37 | 5 | |||
| 151100 | 1 NPT | in | .75 | 2.13 | 4.25 | 2.06 | 1.19 | 2 | 1 | .65 | 1.3 | .25 | 1.32 | .06 | 1.56 | .20 | 1/4 NPT |
| mm | 19 | 54 | 108 | 52 | 30 | 51 | 25 | 17 | 33 | 6 | 34 | 2 | 40 | 5 | |||
| 151125 | 1-1/4 NPT | in | 1 | 2.38 | 4.63 | 2.25 | 1.38 | 2.5 | 1.25 | 1 | 2 | .31 | 1.61 | .06 | 1.68 | .28 | 1/4 NPT |
| mm | 25 | 60 | 118 | 57 | 35 | 64 | 32 | 25 | 51 | 8 | 41 | 2 | 43 | 7 | |||
| 151150 | 1-1/2 NPT | in | 1.25 | 2.75 | 4.63 | 2.25 | 1.38 | 2.5 | 1.25 | .86 | 1.73 | .25 | 1.44 | .06 | 1.88 | .28 | 3/8 NPT |
| mm | 32 | 70 | 118 | 57 | 35 | 64 | 32 | 22 | 44 | 6 | 37 | 2 | 48 | 7 | |||
| 151200 | 2 NPT | in | 1.75 | 3.25 | 4.63 | 2.25 | 1.38 | 3 | 1.5 | 1.17 | 2.34 | .28 | 1.48 | .06 | 2.13 | .28 | 3/8 NPT |
| mm | 44 | 83 | 118 | 57 | 35 | 76 | 38 | 30 | 59 | 7 | 38 | 2 | 54 | 7 |
Heavy Duty Line Vac Performance
| 80 PSIG (5.5 BAR) | Size | Air Consumption | Vacuum | |||
|---|---|---|---|---|---|---|
| Model # | in | mm | SCFM | SLPM | "H2O | kPa |
| 150075, 151075 | .75 | 19 | 26 | 736 | -144 | -36 |
| 150100, 151100 | 1.0 | 25 | 35 | 991 | -105 | -26 |
| 150125, 151125 | 1.25 | 32 | 49 | 1388 | -83 | -21 |
| 150150, 151150 | 1.5 | 38 | 55 | 1557 | -60 | -15 |
| 150200, 151200 | 2.0 | 51 | 75 | 2124 | -42 | -10 |
Heavy Duty Line Vac Models
Back To Top
BSP Threads Available - Contact Distributor
| Heavy Duty Line Vac | |
|---|---|
| Model # | Description |
| 150075 | 3/4" (19mm) Heavy Duty Line Vac |
| 150100 | 1" (25mm) Heavy Duty Line Vac |
| 150125 | 1-1/4" (32mm) Heavy Duty Line Vac |
| 150150 | 1-1/2" (38mm) Heavy Duty Line Vac |
| 150200 | 2" (51mm) Heavy Duty Line Vac |
| Heavy Duty Threaded Line Vac | |
|---|---|
| Model # | Description |
| 152075 | 3/4" (19mm) Heavy Duty Line Vac |
| 152100 | 1" (25mm) Heavy Duty Line Vac |
| 152125 | 1-1/4" (32mm) Heavy Duty Line Vac |
| 152150 | 1-1/2" (38mm) Heavy Duty Line Vac |
| 152200 | 2" (51mm) Heavy Duty Line Vac |
Accessories
Back To Top
| Heavy Duty Line Vac Accessories | |
|---|---|
| Model # | Description |
| 6995 | Mounting Bracket for 3/4" (19mm) and 1" (25mm) Line Vac Units |
| 6996 | Mounting Bracket for 1-1/4" (32mm) and 1-1/2" (38mm) Line Vac Units |
| 6997 | Mounting Bracket for 2" (51mm) and 2-1/2" (64mm) Line Vac Units |
| 9001 | Auto Drain Filter Separator, 3/8 NPT, 65 SCFM (1841 SLPM) |
| 9032 | Auto Drain Filter Separator, 1/2 NPT, 90 SCFM (2549 SLPM) |
| 9002 | Auto Drain Filter Separator, 3/4 NPT, 220 SCFM (6230 SLPM) |
| 9005 | Oil Removal Filter, 3/8 NPT, 15-37 SCFM (425-1048 SLPM) |
| 9006 | Oil Removal Filter, 3/4 NPT, 150 SCFM (4248 SLPM) |
| 9008 | Pressure Regulator, 1/4 NPT, 50 SCFM (1416 SLPM) |
| 9033 | Pressure Regulator, 1/2 NPT, 100 SCFM (2832 SLPM) |
| 9009 | Pressure Regulator, 1/4 NPT, 220 SCFM (6230 SLPM) |
Hose is available in 10', 20', 30', 40' and 50' lengths. Select the hose model number (diameter) and indicate the length with a dash. Example: A Model 6931-20 is 1" ID Hose x 20' long. |
|
| 6928- | Hose 3/8" ID |
| 6929- | Hose 1/2" ID |
| 6930- | Hose 3/4" ID |
| 6931- | Hose 1" ID |
| 6932- | Hose 1-1/4" ID |
| 6933- | Hose 1-1/2" ID |
| 6934- | Hose 2" ID |
| 6935- | Hose 2-1/2" ID |
| 6936- | Hose 3" ID |
