No Drip Atomizing Spray Nozzles – Eliminate drips tp conserve valuable liquids and improve product finsihes!

Tropffreie Zerstäuberdüsen

What Are No Drip Atomizing Nozzles?

These patented no drip atomizing spray nozzles work in the same way like our standard atomizing nozzles. No drip atomizing nozzles have the added benefit of positvely stopping liquid flow when compressed air is shut off. All models use stainless steel construction for durability and corrosion resistance.

Why No Drip Atomizing Nozzles?

When spraying any type of liquid, pst spray liquid flow can cause many problems.Unwanted drips can ruin product finishes on painted or coated surfaces. Additionly, excess liquid flow wastes precious resources such as expensive coatings, chemicals or water. EXAIR´s no drip atomizing nozzles are ideal where no post-spray drip is wanted. When the compressed air aupply is shut off, the no drip nozzles positively seals off the flow of liquid eliminating the possibility of drips. They can be used in any application that our standard atomizing nozzles can be used. Unlike some manufacturers, there is no need to run a separate air line to control the no drip mechanism. The same compressed air used to combine and atomize liquid in a variety of patterns is used to open a valve allowing liquid to flow. That makes these ideal for use with EXAIR´s money and energy saving EFC.

Befestigungswinkel Modell 901318

Mounting Brackets are available – please contact us.

Three basic families of no drip atomizing nozzles are available:

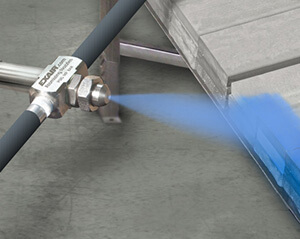

Internal Mix

The internal mix nozzles mix the liquid and water inside the air cap and the result is a finest atomization. They can be used on liquids with a viscosity up to 300 cP. Both air and liquid sides are pressure fed. These nozzles are for pressure fed applications not requiring independent air and liquid control.
Get more information.

Innenmischende Düsen

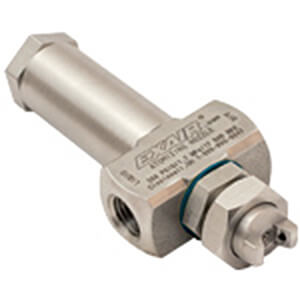

External Mix

These nozzles have the highest flow rates and the air and liquid flows can be adjusted indepentently. They are best where precise liquid flow is needed. They can be used on liquids with a viscosity above 300 cP. Air and liquid sides are pressure fed. For pressure fed applications with independent air and liquid control.
Get more information.

Außenmischende Düsen

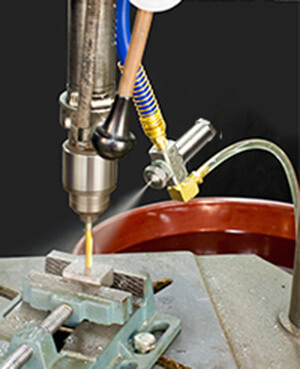

Siphon Fed

These nozzles require no liquid pressure and can be used with gravity fed liquids or lift liquids from a siphon height as much as 36 inches. They can be used on liquids with a viscosity up to 200 cP. They are siphon or gravity fed for non-pressurized applications.
Get more information.

Siphongespeiste Düsen
  • Painting
  • Coating
  • Rinsing
  • Cooling
  • Quenching
  • Wetting
  • Humidification
  • Dust Control
  • No post spray drip
  • Adjustable
  • Easily used with an EFC
  • Minimizes air and liquid consumption
  • All stainless steel construction
  • Fine atomization
  • Interchangeable liquid and air caps
  • Compact
