Cabinet Cooler Sizing Guide

Deliver your Data – Receive a Quote

Use this form to gather the information necessary to specify a Cabinet Cooler system and choose a delivery method below.

* = mandatory field

    Name*:
    Company*:
    Phone number:
    E-mail*:
    Please send us your facts - we will answer with our recommended solution!
    Height of Cabinet
    mm
    Width of Cabinet
    mm
    Depth of Cabinet
    mm
    Max. temperature of air
    °C
    External air temperature now: (1)
    °C
    Max. external air temperature possible:
    °C
    Maximum internal air temperature now: (1)
    °C
    Max. internal temperature possible:
    °C
    Internal heat dissipation in Watt
    Watt
    Solenoid Valve / Thermostat:
    Cabinet Cooler Sizing Guide:
    If "Other", please explain
    My cabinet is (check all that apply):
    My cabinet is (check all that aplly):
    The information is correct and ready to send!

    (1) Using a “Temperature Gun” or infrared thermometer will result in measuring surface temperatures. Air temperatures are needed for the cabinet cooling calculations. Please use a standard thermometer or thermocouple to measure the air temperature.

    NOTE: If you do not use the control cabinet coolers in continuous operation, the following control options offer a very effective way to save compressed air.

    Electronic temperature control

    ETC (Electronic Temperature Control) by EXAIR supports precise temperature control for your cabinet. The temperature is kept at the set value with an accuracy of ± 0.56°C (1°F). The digital display shows the temperature on the interior of the cabinet and only trips the solenoid valve (included) if the temperature setting is exceeded. The ETC’s ABS/PC plastic housing is suitable for environments corresponding to NEMA 12, 4 and 4X (IP54 and IP66). (Cabinet Cooler not included.)

    Model Description
    9239 ETC – Electronic Temperature Control, 240V, 50/60Hz, 1/4″ NPT
    1. Electronic temperature control for control cabinet coolers

    Thermostat

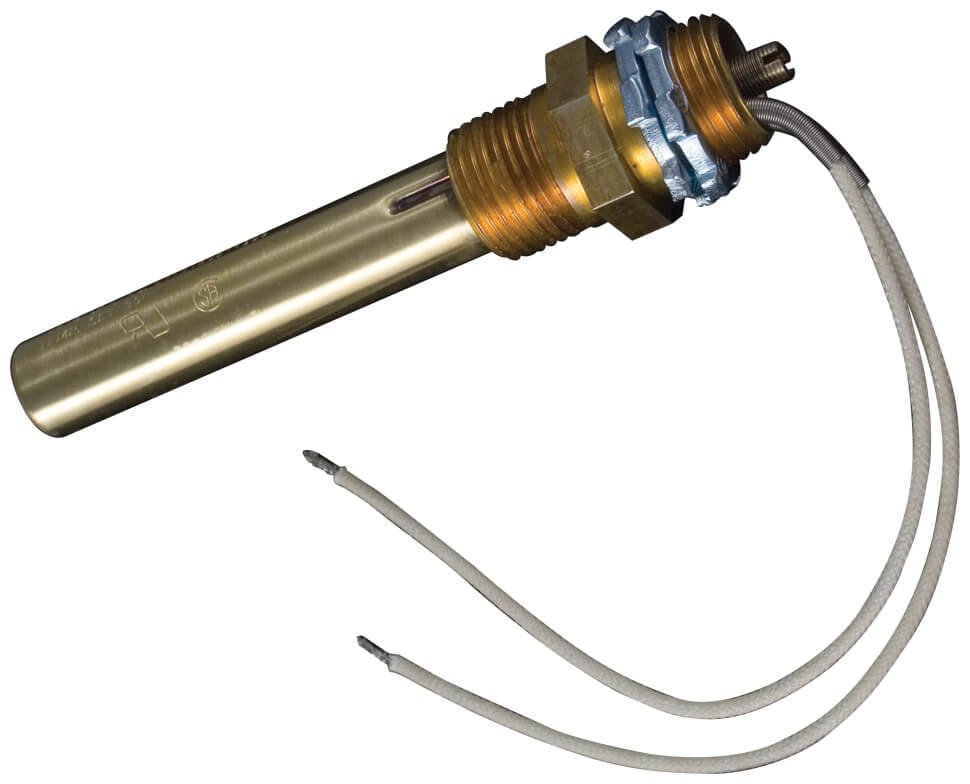

    The adjustable thermostat is factory set to 35°C. It normally keeps the desired temperature with a tolerance of ±1°C. It is designed for 24 V and 240 V, 50/60 Hz and approved by UL and CSA.

    Model Description
    9017 Thermostat
    Thermostat für Schaltschrankkühler or for control cabinet coolers

    Solenoid valves

    Solenoid valves are available for a variety of flow measurements and voltages.
    All modules are UL listed and comply with RoHS and the CE guidelines.

    Model Description
    9018 NEMA 4-4X solenoid valves, 220V-230V, 50/60Hz, 1/4″ NPT, 40 SCFM (1133 SLPM)
    9020 solenoid valves, 230V, 50/60Hz, 1/4″ NPT, 40 SCFM (1133 SLPM)
    9021 solenoid valves, 200-240V, 50/60Hz, 1/4″ NPT, 40 SCFM (1133 SLPM)
    9024 NEMA 4-4X solenoid valves, 240V, 50/60Hz, 1/4″ NPT, 40 SCFM (1133 SLPM)
    9059 NEMA 4-4X solenoid valves, 24VDC, 50/60Hz, 3/4″ NPT, 200 SCFM (5664 SLPM)
    9031 solenoid valves, 24VDC, 50/60Hz, 1/4″ NPT, 40 SCFM (1133 SLPM)
    9034 solenoid valves, 230V, 50/60Hz, 1/2″ NPT, 100 SCFM (2832 SLPM)
    9035 solenoid valves 240V, 50/60Hz, 1/2″ NPT, 100 SCFM (2832 SLPM)
    9058 NEMA 4-4X solenoid valves, 24VDC, 50/60Hz, 1/2″ NPT, 100 SCFM (2832 SLPM)
    9036 solenoid valves, 230V, 50/60Hz, 3/4″ NPT, 200 SCFM (5664 SLPM)
    9037 solenoid valves, 240V, 50/60Hz, 3/4″ NPT, 200 SCFM (5664 SLPM)
    9065 solenoid valves, 24VDC, 50/60Hz, 1″ NPT, 350 SCFM (9911 SLPM)
    Solenoid Valves
