Liquid Nozzle for Cooling, Washing and Rinsing
EXAIR’s new 1/4 NPT FullStream™ liquid atomizing spray nozzle provides a full cone spray pattern for pressurized liquids. They are applied to solve cooling, cleaning, washing, rinsing and dust suppression applications for industry. Their tangential flow design is vaneless, which creates wide open internal features to resist clogging while producing a uniform distribution in a round pattern with medium to large droplets. Their right-angle design is compact and operates up to 100 PSIG liquid pressure. FullStream cone nozzles work well with liquids containing particulate.

Stainless steel construction (Type 303) of liquid atomizing nozzles adds to their durability and corrosion resistance. They are designed for environments with a maximum operating temperature of 426°C.

FullStream nozzles are CE compliant and available in a variety of flow rates. They complement EXAIR’s large line of 1/8, 1/4 and 1/2 NPT Air Atomizing and No Drip Air Atomizing Spray nozzles. Models come with a 5 year Built to Last Warranty.

How it works

With FullStream nozzles, the liquid is supplied into the body of the nozzle creating a swirling action within a vortex chamber. This vortex produces the spray pattern when the machined nozzle breaks the liquid surface tension as it exits the orifice and into a controlled spray angle.

Fullstream™ Feuchtigkeitsdüse

Applications:

  • Cooling & Coating
  • Quenching
  • Dust suppression
  • Washing, rinsing
  • Foam breaking
  • Sanitizing, degreasing
  • Lubricating

Advantages:

  • High liquid flow rates
  • Increase the liquids surface area
  • Increase the liquid coverage area on your target
  • All stainless steel construction
  • Compact footprint, versatile

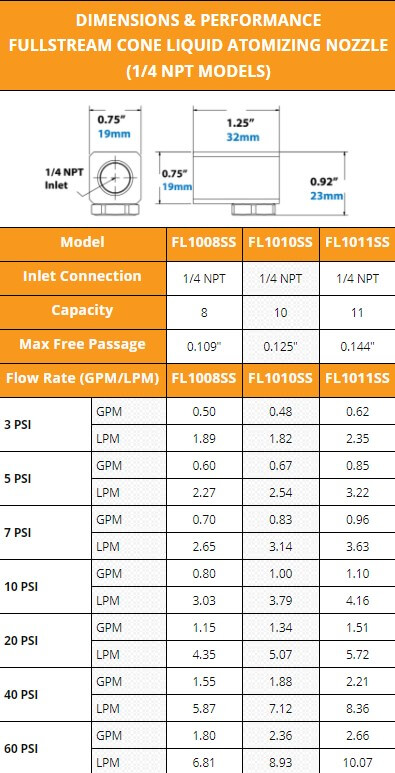

Dimensions & Performance

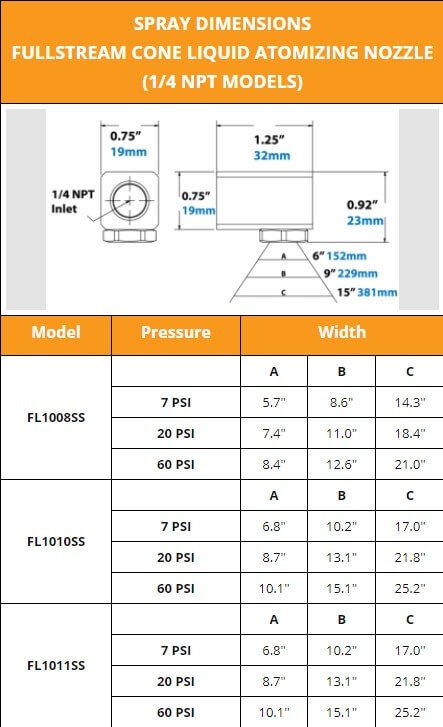

Spray Dimensions
