LED recessed luminaires provide homogeneous as well as flicker- and glare-free illumination in machine rooms of machine tools. Depending on the design, they are used in the machine enclosure or as a recessed installation. This minimizes interfering edges to prevent the accumulation of chips or the like. Thus, they are also excellently suited for the food industry as well as for camera-supported quality monitoring.
LED recessed lights are suitable for very tight installation situations, even close to the workpiece. Direct connection to the supply voltage of the machines.

Application areas: Machines, production plants & assembly lines, vision systems, vehicle construction.

We will be happy to provide you with a quote, please contact us by phone or via our contact form.

FIELDLED II Build-In Luminaire

Recessed Build-In luminaire FIELDLED II – bright LED luminaire for installation in the standardized installation shafts of machines and production systems. Very robust machine lamp with high light output and flicker-free light without UV and IR components. Developed for harsh production environments – oil, water, swarf, coolant and emulsions cannot harm it. The frosted ESG is firmly bonded to the aluminum housing. The supplied FKM seal (Viton®) ensures the tightness between the LED built-in light and the machine housing. Indestructible in perfection.

Advantages:

  • Wide-beam, homogeneous illumination, flicker-free without UV and IR components
  • Light emission over the entire luminaire width of the frosted hard glass
  • Easy installation in standardized shafts of machine tools
  • Oil-resistant, chip-bullet-proof and very high protection class
  • No accumulation of chips on and on the luminaire
  • Permanent light output, since no oil or cooling lubricant burns into the glass

Areas of application:

  • Large-volume systems and machines
  • CNC and machine tools
  • Milling machines and surface grinding machines

Features:

  • High-performance LED chips for daylight white 5200-5700 K
  • Beam angle 120 ° and color rendering Ra> 85
  • Compact LED equipment inside – extremely powerful
  • 5 mm thick, frosted tempered glass
  • Light-Forming Technology
  • Flat installation; Fastening via M6 countersunk head screws
  • Use in ambient temperatures: -30 ° C to + 55 ° C
  • Heat dissipation to the rear via aluminum body
  • Highest degree of protection IPX9K and above-average service life> 60,000h (L80 / B10)
  • Connection voltage 24V DC; Connection via M12 plug connection on the back
  • CE and ETL listed safety test seal
  • FKM seal for sealing between luminaire and machine included in delivery
  • Maintenance-free, 36 months warranty
  • Developed and manufactured in Germany
Models Description
4028024 400+400mm, Head length 548 mm, Luminous Flux up to 2373 lm
4028023 400+400mm, dimmable, Head length 548 mm, Luminous Flux up to 2373 lm
4028026 Watchmaker, 400+250mm, Head length 380 mm, Luminous Flux up to 1582 lm
4028025 Watchmaker 400+250mm, dimmable, Head length 380 mm, Luminous Flux up to 1582 lm
Models Description
4028012 Articulated Arm Lamp Wall Bracket
4028013 Articulated Arm Light Adapter for T-Slot Profiles
4028014 Articulated Arm Light, Screw-On Base, Plastic
4028029 Additional Magnifier UNILED II, Lens ø 132 mm, 3.55 dpt.

TUBELED_40 II Integrated

LED recessed luminaire TUBELED_40 II INTEGRATED – proven LED machine luminaire in the built-in version, suitable for all common installation shafts in machine tools. The integrated recessed luminaire has protection class IP67 / IP69K. It is made for harsh production environments and impresses with its enormous amount of light power and high light output. The emitted 100 ° area light is amplified with light forming technology in the direction where it is needed. The TUBELED_40 II Integrated recessed luminaire is 100% CNC suitable, because the built-in version of the TUBELED_40 II, with its robust housing and safety glass, is resistant to chip bombardment as well as coolants and lubricants.

Advantages:

  • Bright and flicker-free illumination, without UV and IR components
  • Generous lighting through 100 ° surface light
  • Space-saving geometry: fits into common installation slots
  • Easy and quick retrofitting of Machines
  • High degree of protection IP67 / IP69K
  • ON / OFF interface: load-free switching, flashing, flashing and dimming possible

Areas of application:

  • Machine tools
  • Woodworking machines
  • Packaging machines
  • Injection molding machines

Features:

  • High-performance LED chips for daylight white 5200-5700 K
  • Luminous flux-optimized light yield and flicker-free illumination without UV and IR components
  • Beam angle 100 ° and good color rendering abe Ra> 85
  • Crack-proof, 4 mm thick ESG with opal white glare control
  • Protection class IP67 / IP69K and above-average service life> 60,000h (L80 / B10)
  • More direct Connection to machine or system voltage 24V DC via M12 plug connections
  • Chip bulletproof, vibration and shock resistant – 100% CNC suitable
  • Recessed luminaire for recess, sealed and screwed over cover
  • Oil-resistant, sprayed-on seals
  • Light Forming Technology for light guidance
  • Heat dissipation via the rear profile – no burning in of coolants and lubricants
  • CE and ETL listed test seals
  • Maintenance-free, 36 months warranty
  • Made in Germany
Models Description
4028130 220x74x3mm (Länge x Höhe x Breite)
4028135 340x78x3mm (Length x Height x Width)
4028131 395x74x3mm (Length x Height x Width)
4028132 570x74x3mm (Length x Height x Width)
4028134 700x78x3mm (Length x Height x Width)
4028133 745x74x3mm (Length x Height x Width)
Models Description
4028012 Articulated Arm Lamp Wall Bracket
4028013 Articulated Arm Light Adapter for T-Slot Profiles
4028014 Articulated Arm Light, Screw-On Base, Plastic
4028027 Articulated Arm Light Adapter, Aluminum 60x60mm

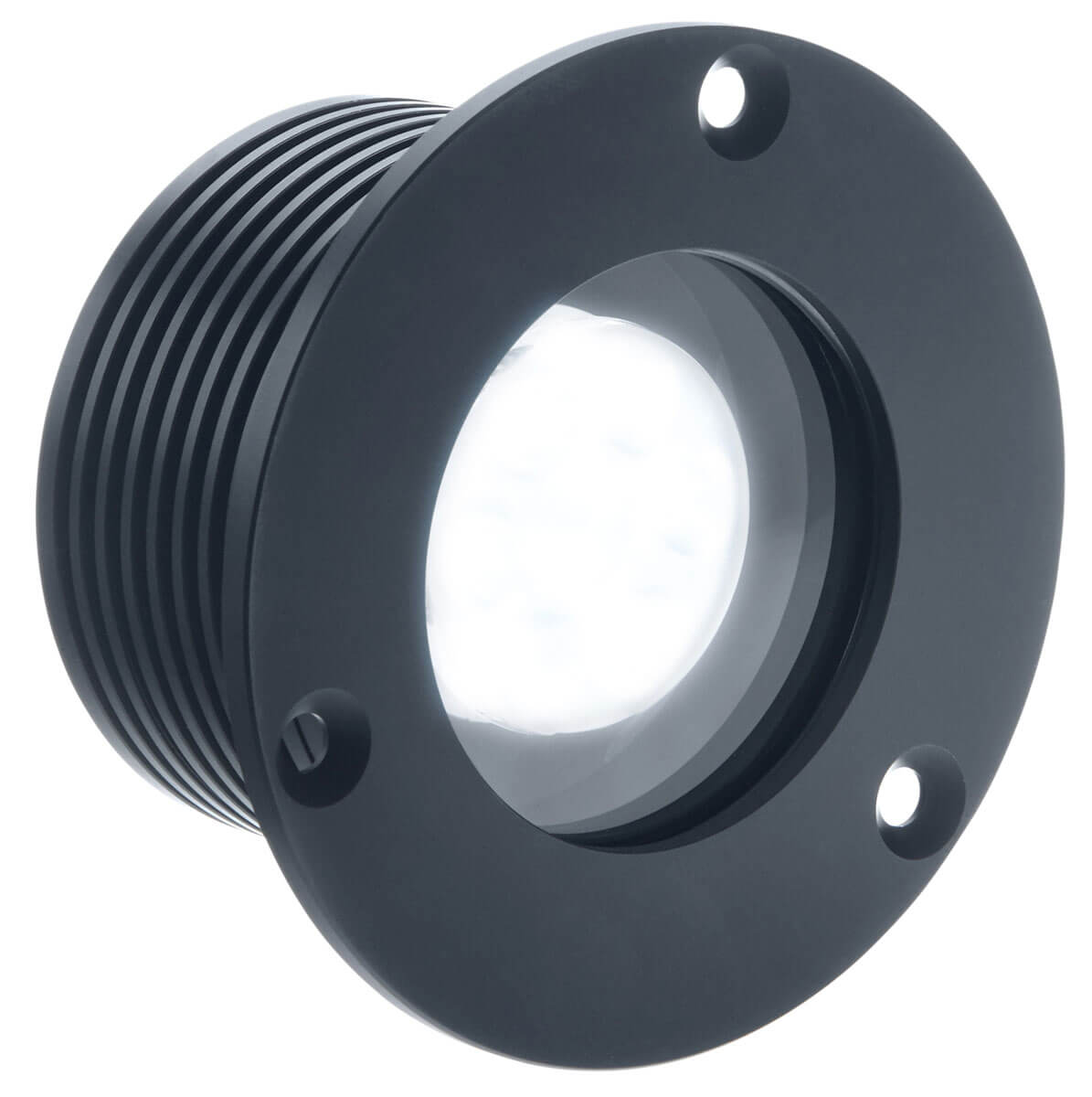

SPOTLED II recessed luminaire

Recessed luminaire SPOTLED II Built-In LED machine luminaire for point or area light. Universally applicable recessed luminaire with daylight white 5200 – 5700K, which can be used as a spotlight or wide-beam area light. When mounted recessed, the SPOTLED II only builds up minimally on the surface. This means that the machine lamp can be used in any desired installation situation.

Advantages:

  • Pointed or flat, flicker-free light without UV and IR components
  • Oil-resistant LED lamp and chip bulletproof: made for rough production environments
  • Installation in standard recess diameter 70 mm
  • low installation depth and only 4 mm surface structure
  • No tension star formation

Areas of application:

  • CNC and machine tools
  • For camera-supported quality assurance during processing
  • For serial use and for Retrofitting in machines

Features:

  • High-performance LED chips for daylight white 5200-5700 K
  • Variants with 3 different beam angles: 16 °, 25 ° or 40 ° and color rendering Ra> 80
  • 4 mm ESG cover, oil-resistant and chip-proof
  • Aluminum base body for heat dissipation to the rear
  • Protection class IP 67 and lifetime> 50.0 00h (L80 / B10)
  • Connection voltage 24V DC via M12 connector on the back
  • FKM seal (Viton®) included in delivery
  • Maintenance-free, 36 months warranty
  • Made in Germany
Models Description
4028028 Spot 16°
4028029 Medium 25°
4028027 Wide 40°
Models Description
