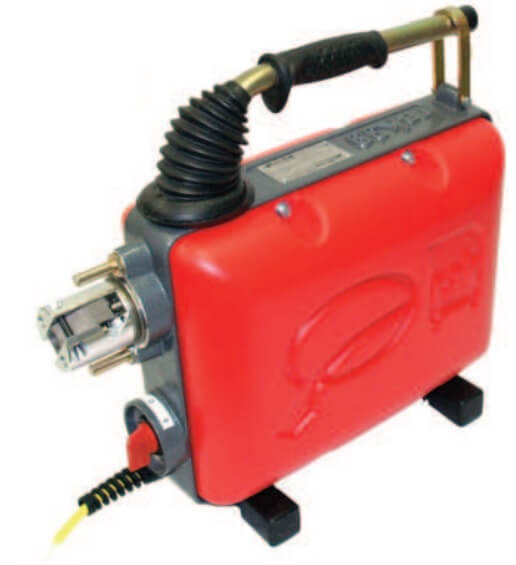

rak-39 Small pipe cleaning machine for sanitary work

The rak-39 cleaning machine is ideal for universal use in case of pipe blockages in connection pipes of washbasins, toilets, drain pipes, floor drains and roof drains. Like all rak pipe cleaning machines, the rak-39 has the patented external clamping jaw system, which enables a particularly quick change of the clamping system. For pipe diameters 30 – 100 mm with 6mm, 8 mm, 10 mm and 16mm spirals. Due to the 0,5 PS motor, power supply 230 V AC / 50 Hz a working length of 40 m with 16 mm spirals is possible. Delivery incl. clamping jaws and PRCD switch. Thanks to the continuous shaft and the closed ball bearing, no maintenance is necessary for the rak pipe cleaning machines. The machine does not need to be greased after each use. rak pipe cleaning machines are very durable and mobile.

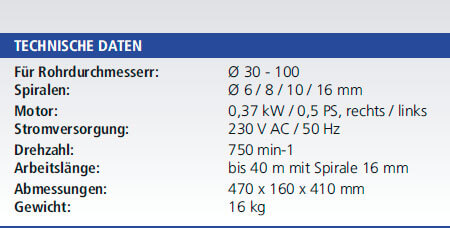

rak-39 pipe cleaning machine: Technical details

Bogenpacker

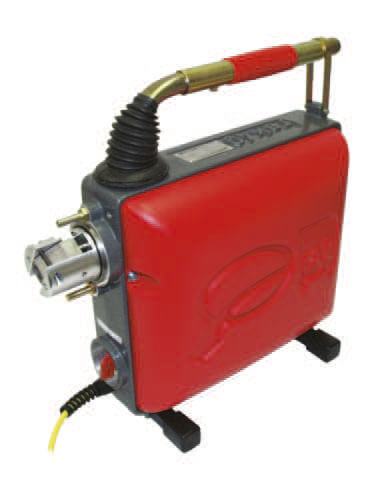

rak-40 All-Round pipe cleaning machine for pipe cleaning and plugging

The versatile cleaning machine rak-40 was developed for flexible use in building services, but can also be used for more robust industrial applications due to its powerful motor and higher pulling power. As with all rak pipe cleaning machines, the rak-40 has the patented external clamping jaw system, which allows the clamping system to be changed very quickly. The machine is suitable for pipe diameters from 30 – 150 mm with 6 mm, 8 mm, 10 mm, 16 mm and 22 mm spirals. Due to the 1,0 PS motor, power supply 230 V AC / 50 Hz a working length of 60 m with 22 mm spirals is possible. Delivery incl. clamping jaws and PRCD switch. Thanks to the continuous shaft and the closed ball bearing there are no maintenance intervals for the rak pipe cleaning machines and you do not have to re-grease the machine after each use. In addition, the interior and thus sensitive parts remain free of dirt and moisture. rak machines are very robust due to their low weight and can be used in mobile applications.

rak-40 pipe cleaning machine: Technical details

Hausanschluss Packer mit Bürsten

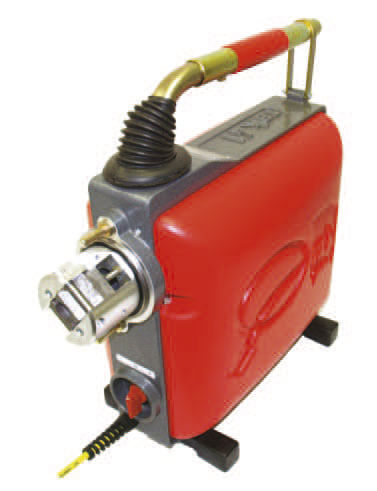

rak-41 Professional pipe cleaning machine for heavy & industrial cleaning

The professional cleaning machine rak-41 is suitable for universal pipe cleaning in industry and municipalities. It is predestined for stubborn pipe blockages and incrustations. Like all pipe cleaning machines of the rak-series, the rak-41 also has the patented external clamping jaw system, which enables a particularly quick change of the clamping system. The machine is suitable for pipe diameters of 30 – 250 mm with 22 mm and 32 mm spirals. Due to the 1,36 PS motor, power supply 230 V AC / 50 Hz a working length of 80 m with 32 mm spirals is possible. Delivery incl. clamping jaws and PRCD switch. rak machines are very durable and due to the low weight extremely flexible in use. Thanks to the continuous shaft and the closed ball bearing there are no maintenance intervals for the rak pipe cleaning machines and you do not have to re-grease the machine after each use. The interior and the sensitive parts inside remain free of dirt and moisture.

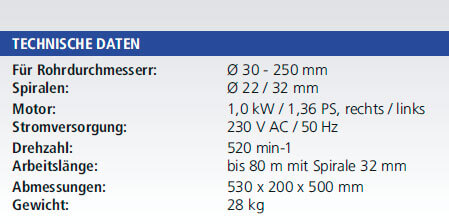

rak-41 pipe cleaning machine: Technical details

Lateral Packer zur Kanalsanierung / Reparatur von Hausleitungen

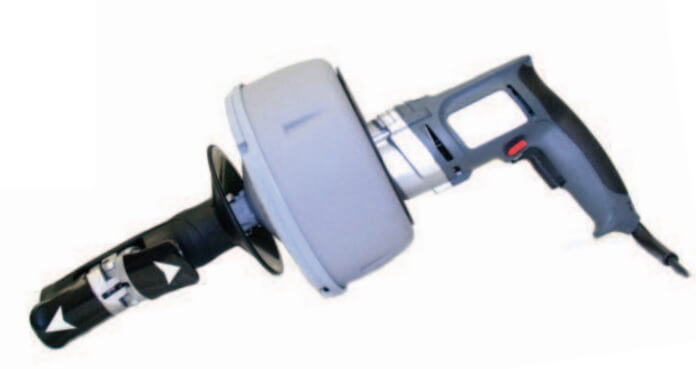

Motor-Hand-rak with 0,55 PS motor for 8 mm spirals

Electric hand-rak with 0,55 HP motor for 8 mm spirals. Electric hand-rak for normal cleaning work, infinitely variable, weight only 6 kg.

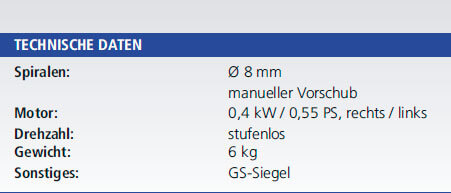

Motor-Hand-rak: Technical details

Bogenpacker zur Sanierung in Rohrbögen

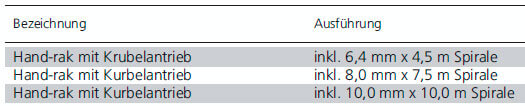

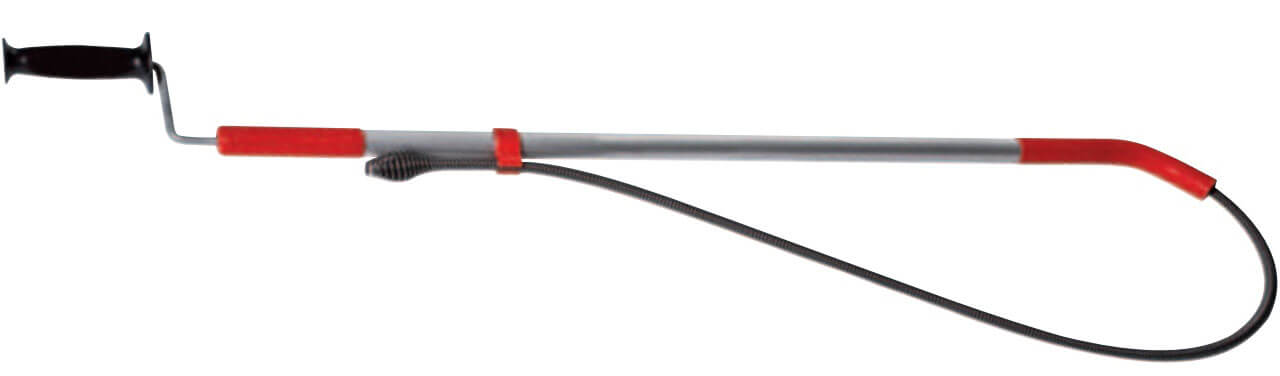

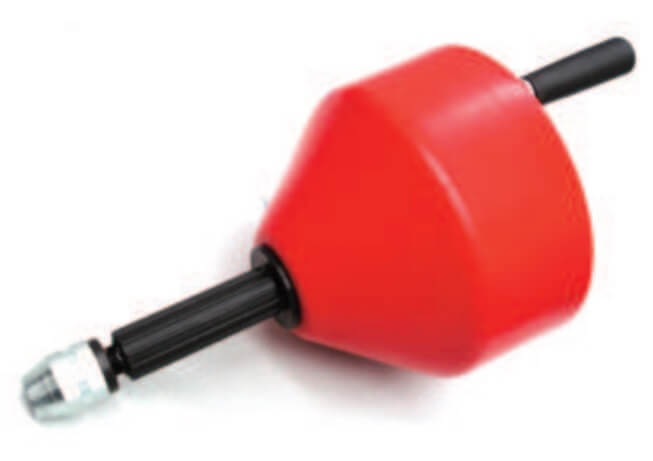

Hand-rak with crank drive

Hand-rak with crank drive in a plastic case with air slot at the back. This guarantees drying of the spiral as well as visual control after use. The Hand-rak with crank drive is a real lightweight and can therefore also be driven by a drill.

Flex-Adapter

Hook spanner for rak machine 16-32

Accessories for rak-39, rak-40 and rak-41.

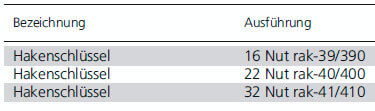

Hook spanner: Technical details

Schiebestange blau

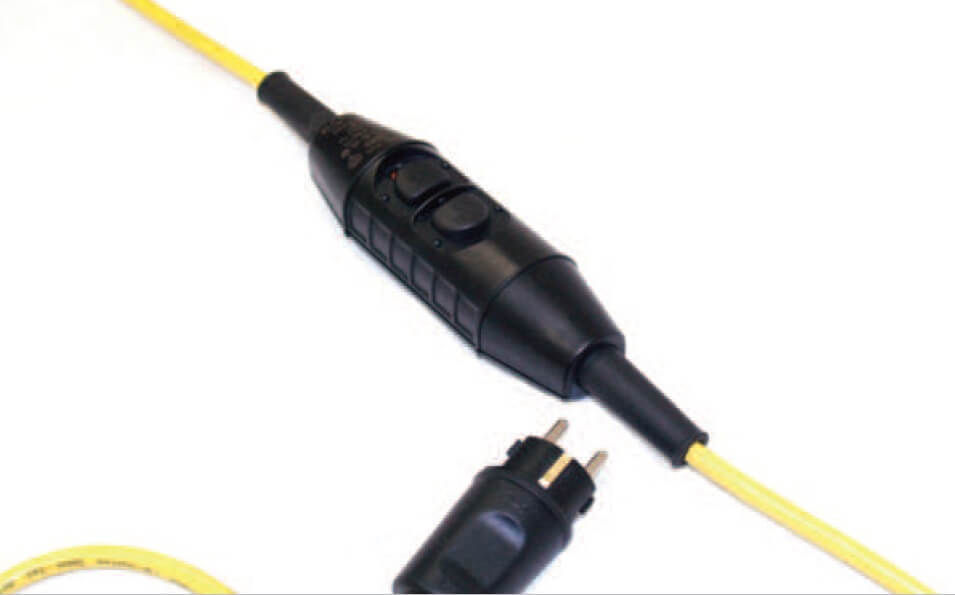

Personal safety switch for all rak machines

Personal safety switch approved and suitable for all rak machines, with 5 meters cable. Detects fault currents and interrupts the power supply.

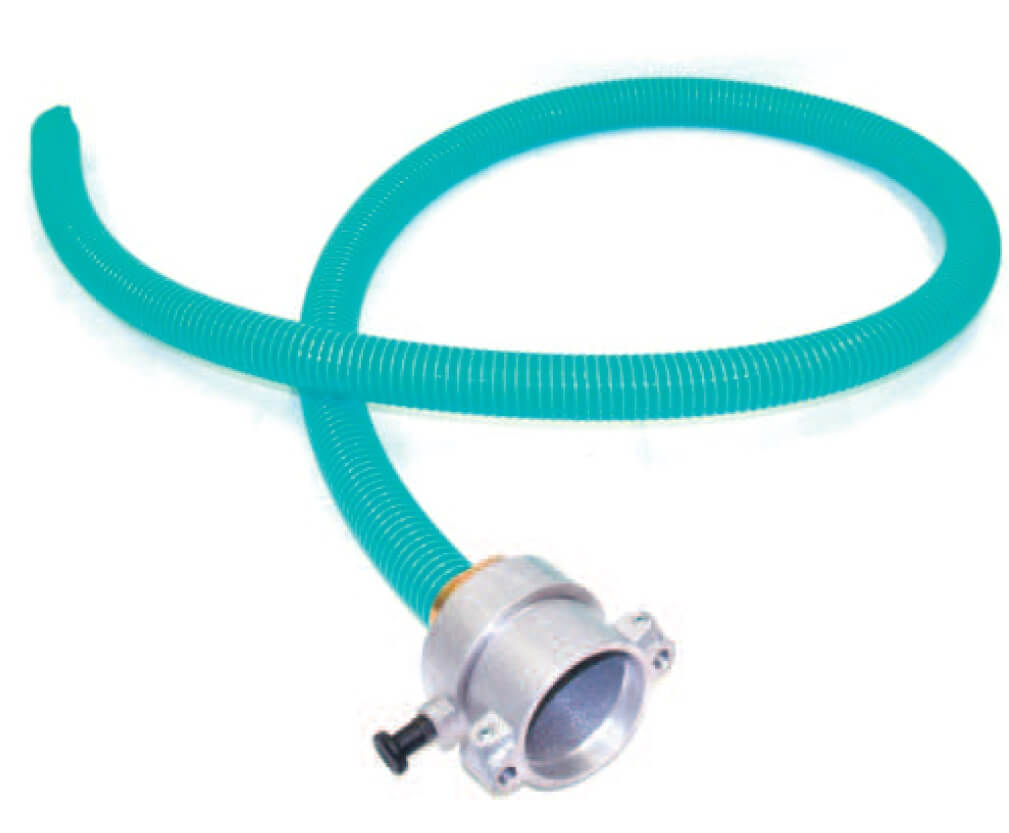

Guide hose 0.5 – 4.0 m for rak pipe cleaning machines

Guide hose for the protection of the spirals in lengths 0.5 – 4.0 m for rak-39, rak-40 and rak-41. The guide hose is placed over the clamping jaw system on the stud bolts for the protection and vibration damping of the spirals and locked by means of grub screws.

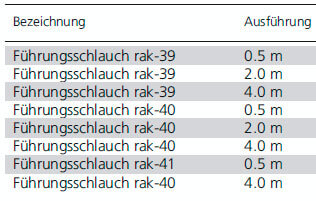

Guide hose: Technical details

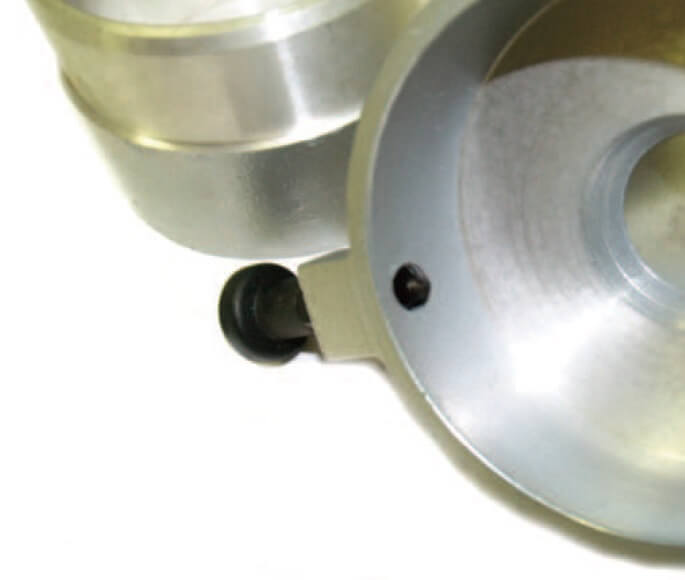

Hose holder complete for rak pipe cleaning machines

Click lock / hose holder made of robust cast iron for pipe cleaning machines rak-39, rak-40, rak-41 complete with catch, clamp and grub screws.

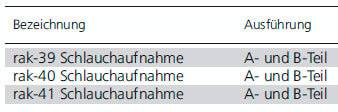

Hose holder: Technical details
