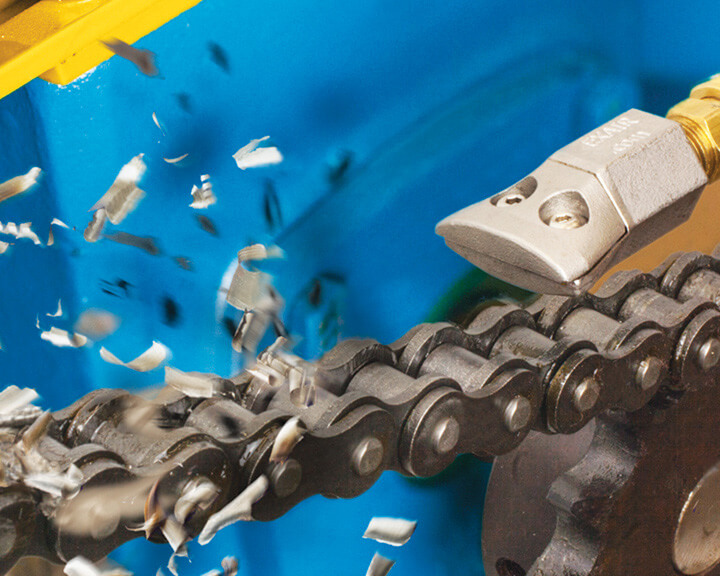

EXAIR´s Flat Super Air Nozzle 1″ (Model 1126, air inlet 1/8″ NPT/BSP) is highly efficient, unique air nozzle. The patented design uses a special shim to maintain the critical position of the component parts. A precise amount of air is released through the thin slot, across a flat surface. The result is a 25 mm wide, forceful stream of high velocity, laminar airflow with minimal air consumption and noise.

The 1″ Flat Super Air Nozzle and the 2″ Flat Super Air Nozzle is shipped with a .015″ (0.38mm) air gap opening that is set with a stainless steel shim positioned between the cap and the body. Force and flow may be easily increased or decreased by installing a different shim.

The High Power Super Air Nozzle 1″ produce a flat 1″ (25mm) wide airstream with a blowing force of 1 pound. The unique design of this super-efficient nozzle makes it an ideal fit for both tight spaces and tight budgets.

Flachstrahldüse Flat Super Air Nozzle

Flat Super Air Nozzle 1″ Model 1126

BSP Threads Available – Contact Us.

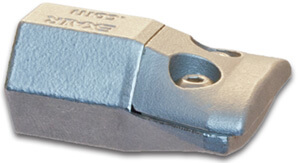

Modell 1126 Flachstrahldüse Flat Super Air Nozzle 1

Model 1126 1/8″ NPT female
Material: Zinc Aluminum alloy

Modell 1126SS 1/8″ NPT female
Material: Edelstahl, Typ 316
across flats 16mm

Airflow Pattern

Flachstrahldüse Flat Super Air Nozzle Modell 1126 Abmessungen/Dimensions

Performance

Air Consumption Force* Sound Level
l/min Gramm dBA
297 278 75

*Force measured at 12″ (305 mm) from target, .015″ (0.38 mm) shim installed. Sound level measured at 3″ (914 mm). All measurements taken at 80 PSIG (5.5 BAR).

Dimensions

Flachstrahldüse Flat Super Air Nozzle 1126 Abmessungen Dimensions

1″ High Power Flat Super Air Nozzle

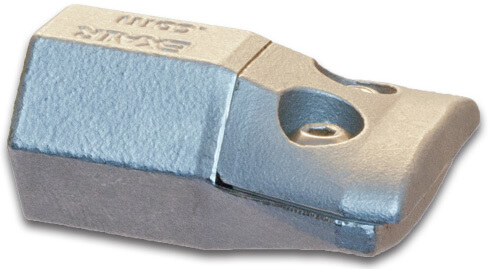

Modell 1126SS Flachstrahldüse

Modell HP1126 1/8″ NPT female
Material: Zinc Aluminum alloy

Modell HP1126SS 1/8″ NPT female
Material: Type 316, Stainless Steel
across flats 16 mm

Dimensions and Airflow Pattern

Performance

Air Consumption Force* Sound Level
l/min Gramm dBA
495 462 82

*Force measured at 12″ (305 mm) from target, .015″ (0.38 mm) shim installed. Sound level measured at 3″ (914 mm). All measurements taken at 80 PSIG (5.5 BAR).

Dimensions

Flachstrahldüse Flat Super Air Nozzle 1126 Abmessungen Dimensions

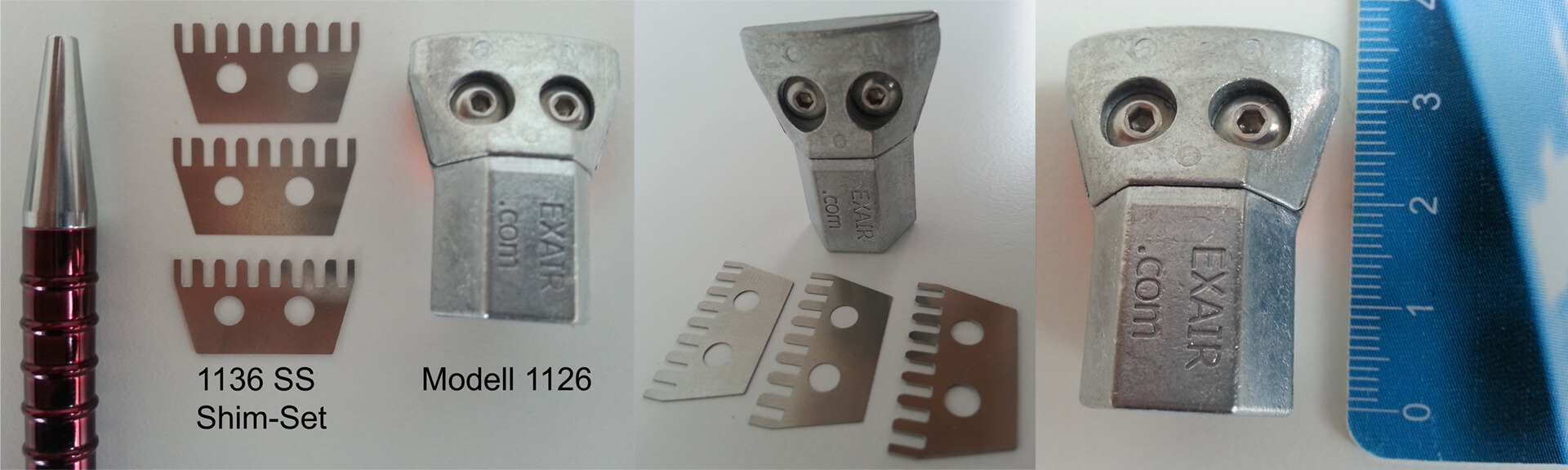

Flachstrahldüse Flat Super Air Nozzle Shims 1 Zoll
