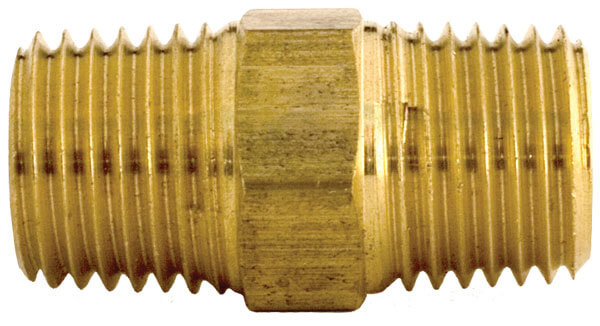

Hex Nipple
Model Material Thread Size
9890 Brass 1/8 NPTM x 1/8 NPTM
9944 Brass 1/4 NPTM x 1/4 NPTM
9759 Brass 3/8 NPTM x 3/8 NPTM
9760 Brass 1/2 NPTM x 1/2 NPTM
9761 Brass 3/4 NPTM x 3/4 NPTM
9958 304SS 1/8 NPTM x 1/8 NPTM
9959 304SS 1/4 NPTM x 1/4 NPTM
9960 304SS 3/8 NPTM x 3/8 NPTM
9961 304SS 1/2 NPTM x 1/2 NPTM

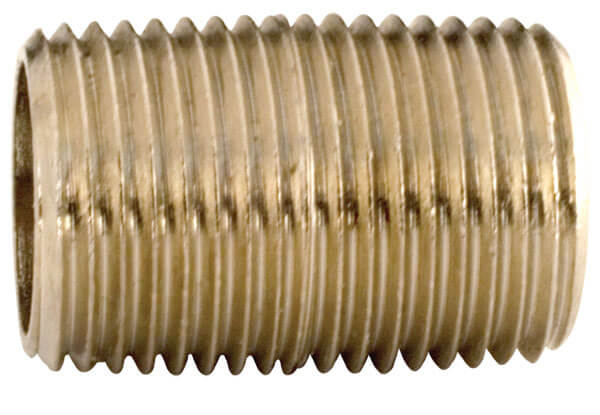

Close Nipple
Model Material Thread Size
9551 Brass 1/4 NPTM x 1/4 NPTM
9752 Brass 3/8 NPTM x 3/8 NPTM
900745 Brass 1/2 NPTM x 1/2 NPTM
900559 Brass 3/4 NPTM x 3/4 NPTM
900309 NP Brass 1/8 NPTM x 1/8 NPTM
900084 NP Brass 1/4 NPTM x 1/4 NPTM
900435 NP Brass 3/8 NPTM x 3/8 NPTM
900436 NP Brass 1/2 NPTM x 1/2 NPTM
900409 316SS 1/8 NPTM x 1/8 NPTM
900160 316SS 1/4 NPTM x 1/4 NPTM
900505 316SS 3/8 NPTM x 3/8 NPTM
900506 316SS 1/2 NPTM x 1/2 NPTM

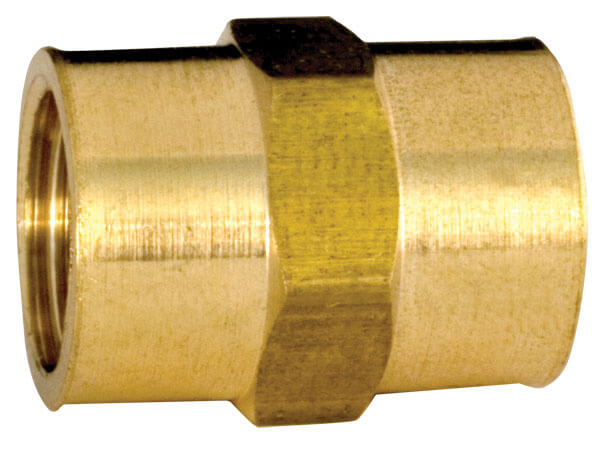

Coupler
Model Material Thread Size
900453 NP Brass 1/8 NPTF x 1/8 NPTF
9871 Brass 1/4 NPTF x 1/4 NPTF

NPTM = NPT male, NPTF = NPT Female, NP = Nickel Plated

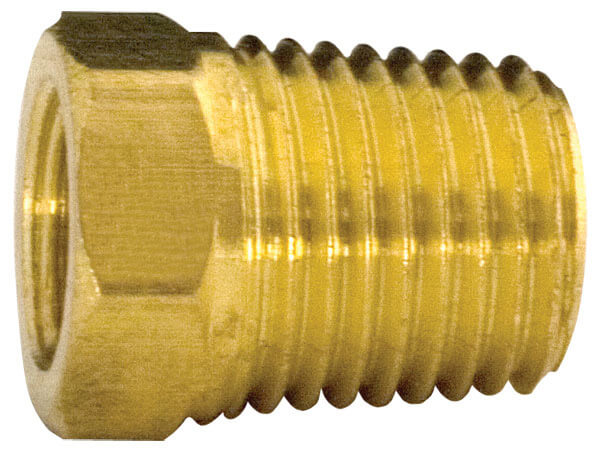

Reducer
Model Material Thread Size
900405 Brass 1/4 NPTM x 1/8 NPTF
900105 Brass 1/4 NPTF x 1/8 NPTM
9946 Brass 1/4 NPTM x 1/8 NPTF
9553 Brass 3/8 NPTM x 1/4 NPTM
9897 Brass 1/2 NPTM x 3/8 NPTM
900736 Brass 1/2 NPTM x 1/4 NPTM
900622 Brass 1/2 NPTM x 1/4 NPTF
Tee
Model Material Thread Size
900005 Brass 1/4 NPTF x 1/4 NPTF x 1/4 NPTM
9851 Brass 1/4 NPTM x 1/4 NPTM x 1/4 NPTM
9971 Brass 3/8 NPTF x 1/4 NPTF x 3/8 NPTM
9896 Brass 3/8 NPTF x 3/8 NPTF x 3/8 NPTF
900621 Brass 1/2 NPTF x 1/2 NPTF x 1/2 NPTF
900734 Brass 1/2 NPTF x 1/4 NPTF x 1/2 NPTF

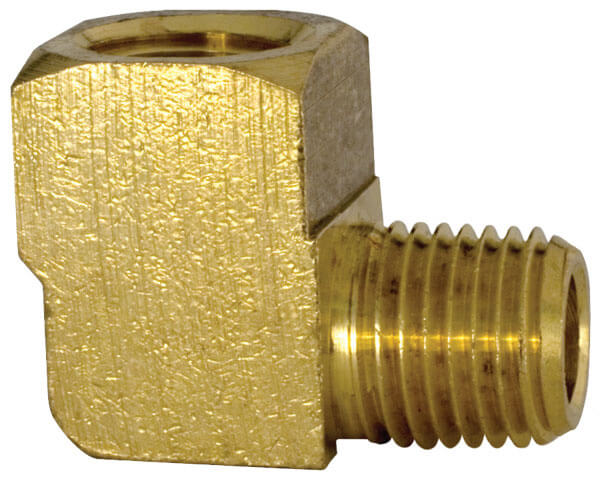

Elbow
Model Material Thread Size
7674 Brass 1/8 NPTM x 1/8 NPTF 45°
9555 Brass 1/4 NPTM x 1/4 NPTF 90°
9895 Brass 3/8 NPTM x 3/8 NPTF 90°
900073 Brass 1/4 NPTM x 3/8 Tube 90°

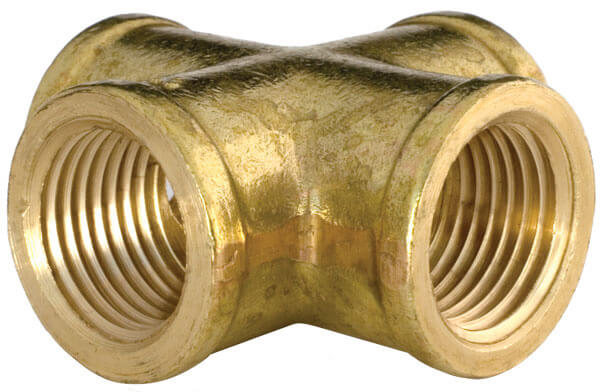

Cross
Model Material Thread Size
900735 Brass 1/2 NPTF x 1/2 NPTF

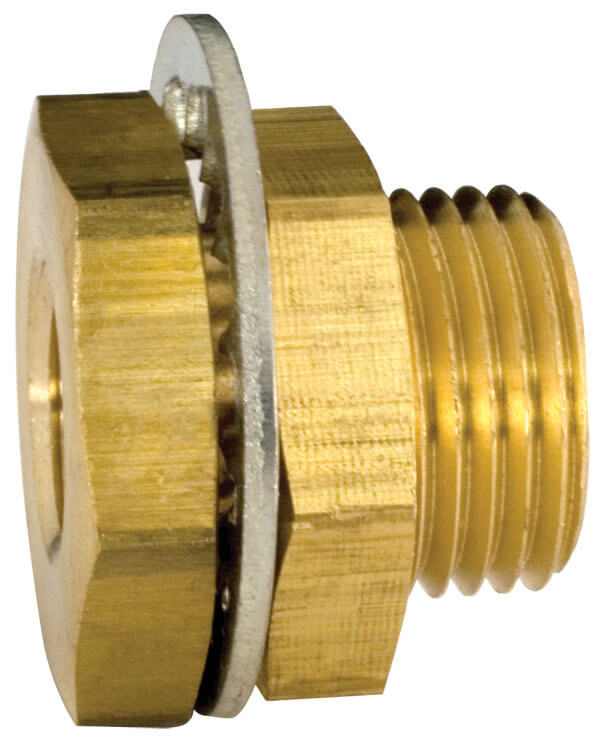

Bulkhead Fitting
Model Material Thread Size
900069 Brass 3/4 NPTM x 1/4 NPTF

NPTM = NPT Male, NPTF = NPT Female, NP = Nickel Plated
