Swivel Fittings

EXAIR’s Swivel Fittings make it easy to adjust the position of the Air Nozzles and Jets. The Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 Stainless Steel.

Models

  • Model 9201 M4 x 0.5mm female x 1/8 MNPT Swivel Fitting, 316
  • Model 9202 M5 x 0.5mm female x 1/8 MNPT Swivel Fitting, 316
  • Model 9203 M6 x 0.75mm female x 1/8 MNPT Swivel Fitting, 316
  • Model 9052 1/8 BSP/NPT Swivel Fitting, 303
  • Model 9053 1/4 BSP/NPT Swivel Fitting, 303
  • Model 9068 3/8 BSP/NPT Swivel Fitting, 303
  • Model 9069 1/2 BSP/NPT Swivel Fitting, 303
  • Model 9023 3/4 BSP/NPT Swivel Fitting, 303
  • Model 9204 1 BSP/NPT Swivel Fitting, 303
Schwenkverschraubungen

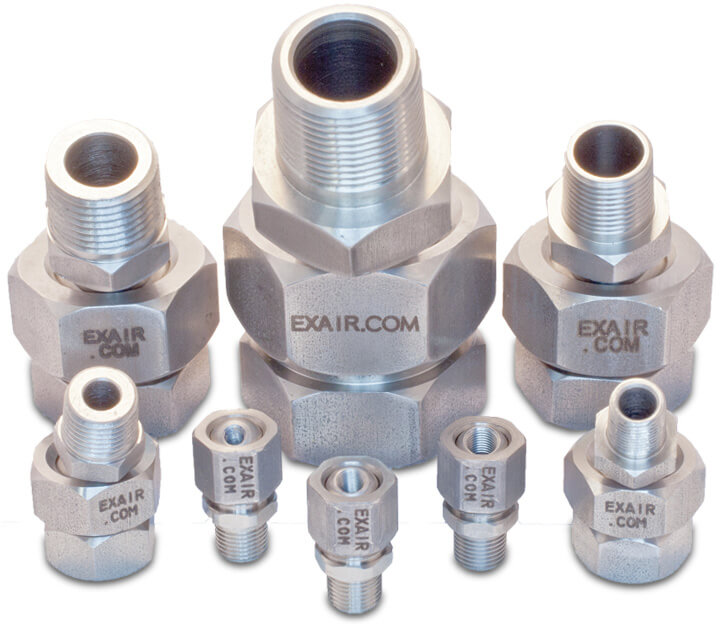

Swivel Fitting can be used with air nozzles and many other
EXAIR products. They are available in 1/8, 1/4, 3/8 and 1/2
NPT sizes.

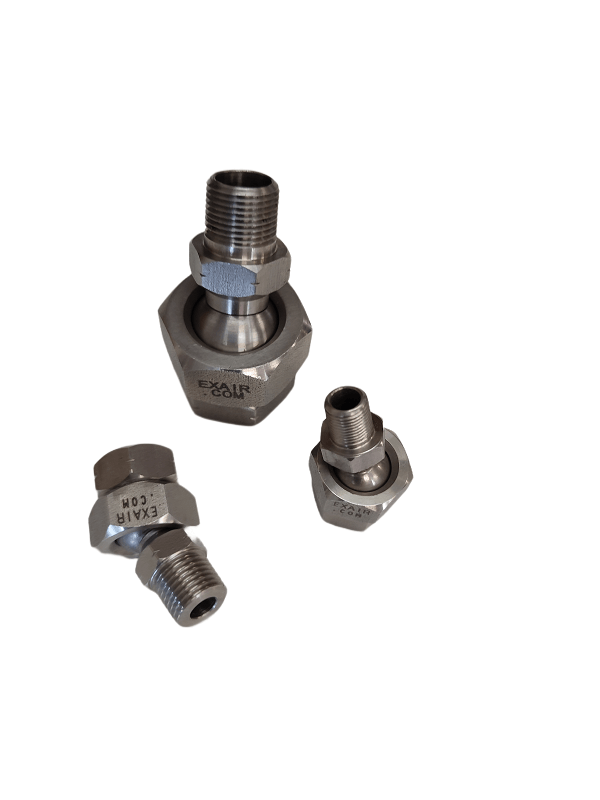

Swivel_fittings_EXAIR_angle

View of the angles for swivel fittings

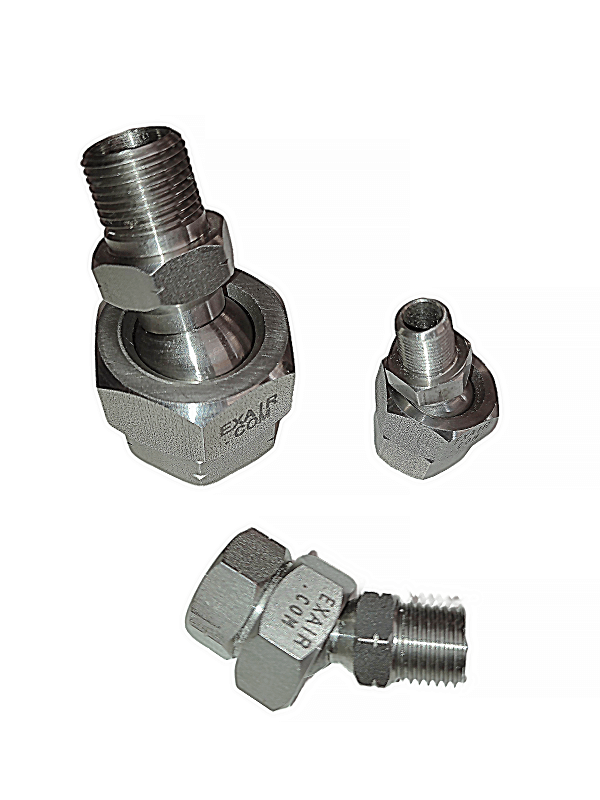

Swivel_fittings_swivel_joints_EXAIR_view_angle

Total swing angle of 50 degrees
