Tropffreie Innenmischende Zerstäuberdüse Breiter Kegel, rundes Sprühbild

Model AW2030SS is used to keep dust down during charcoal briquette production.

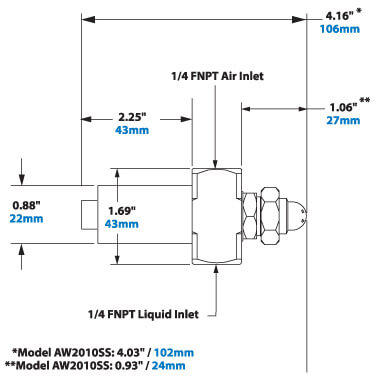

Model AW2010SS, AW2020SS, AW2030SS and AW2040SS – 1/4” NPT/BSP
Model AW6010SS, AW6020SS und AW6030SS – 1/2” NPT/BSP
No Drip Internal Mix Wide Angle Round Pattern Nozzles

No Drip Internal Mix Wide Angle Round Pattern Nozzles are ideal for covering a broad area. They can be adjusted for a light mist or a heavy soaking spray. They are often used for dust mitigation, humidification, and cooling of products in a broad area. The No Drip Internal Mix Wide Angle Round Pattern Nozzles can also be used for applying a coating to parts packed in large containers, for example, misting a container of stamped steel with oil to prevent oxidation during shipment.
No drip atomizing spray nozzles work in the same way our standard atomizing nozzles do, but have the added benefit of positively stopping liquid flow when compressed air is shut off.

No Drip Internal Mix Wide Angle Round Pattern Nozzles Model AW2010SS

Model: AW2010SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

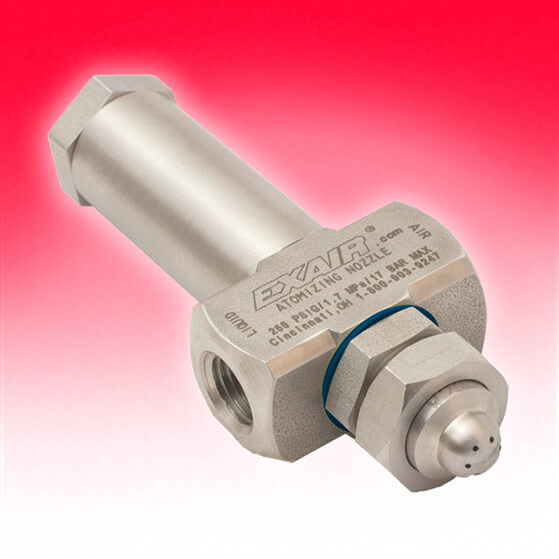

No Drip Internal Mix Wide Angle Round Pattern Nozzles Model AW2020SS

Model: AW2020SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

No Drip Internal Mix Wide Angle Round Pattern Nozzles Model AW2030SS

Model: AW2030SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

No Drip Internal Mix Wide Angle Round Pattern Nozzles Model AW2040SS

Model: AW2040SS

1/4″ NPT/BSP
Material: Stainless Steel Type 303

No Drip Internal Mix Wide Angle Round Pattern Nozzles Model AW6010SS

Model: AW6010SS

1/2″ NPT/BSP
Material: Stainless Steel Type 303

No Drip Internal Mix Wide Angle Round Pattern Nozzles Model AW6020SS

Model: AW6020SS

1/2″ NPT/BSP
Material: Stainless Steel Type 303

No Drip Internal Mix Wide Angle Round Pattern Nozzles Model AW6030SS

Model: AW6030SS

1/2″ NPT/BSP
Material: Stainless Steel Type 303

Temperature:No Drip Wide Angle Round Pattern Spray Nozzles are rated for temperatures up to 204°C.

Please click here to view Droplet Size and Spray Angle information.

No Drip Internal Mix Wide Angle Round Pattern Nozzles
Spray Dimensions
Model Pressure Width Max. Depth m
Air BAR Liquid BAR A B C
cm cm cm
AW2010SS 0.7 0.7 18 23 36 1.5
1.4 1.4 23 28 38 1.8
2.3 2.1 25 30 41 2.4
2.9 2.8 25 30 41 2.7
4.1 4.1 25 30 41 3.7
AW2020SS 0.8 0.7 25 33 43 2.7
1.7 1.4 28 33 46 3.4
2.3 2.1 28 33 46 3.7
3.2 2.8 28 36 46 4.3
4.1 4.1 28 36 48 4.9
AW2030SS 0.8 0.7 25 33 46 2.7
1.5 1.4 28 33 46 3.4
2.3 2.1 28 36 46 4
3.2 2.8 28 36 48 4.6
4.5 4.1 28 36 51 5.8
AW2040SS 1.9 0.7 25 36 41 4.9
3.2 1.4 28 36 46 5.5
4.1 2.1 30 41 53 6.4
5.2 2.8 30 41 56 7.3
6.2 4.1 30 41 58 7.6
Flow Rates
l/h = Liter per Hour l/min = Standard Liter per Minute
0.7 BAR Liquid 1.4 BAR Liquid 2.1 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AW2010SS 0.6 6.8 8 1 9.1 11 1.5 10.2 14
0.7 6.1 11 1.2 7.9 14 2.1 8.7 20
0.8 5.7 11 1.5 7.2 17 2.5 7.2 23
1 4.9 14 1.8 6.1 20 2.8 6.1 25
AW2020SS 0.8 10.6 48 1.5 15.1 65 2.1 20.4 71
1 6.1 57 1.7 11.7 71 2.3 14.4 91
1.8 7.6 82 2.6 6.8 113
2.8 3.4 127
AW2030SS 0.7 25.7 31 1.4 32.2 42 2.1 34.1 57
0.8 17 40 1.5 22.7 54 2.3 22 79
1 8.3 54 1.7 17 65 2.6 9.1 108
1.8 9.8 76 2.8 5.3 122
AW2040SS 1.7 22.7 153 2.6 35.2 218 3.3 58.7 238
1.9 15.1 173 3 20.8 258 3.9 34.1 300
2.1 9.5 190 3.3 13.2 283 4.3 22.7 343
2.2 7.6 207 3.6 7.2 306 4.8 10.6 379
l/h = Liter per Hour l/min = Standard Liter per Minute
2.8 BAR Liquid 4.1 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AW2010SS 2.1 11.4 20 3 13.2 25
2.6 9.8 23 3.8 11.7 31
3.2 7.9 28 4.5 9.5 37
3.4 7.2 31 5.2 7.9 42
AW2020SS 2.6 24.2 82 3.7 32.2 99
3 16.7 110 4 26.5 116
3.3 9.8 130 4.5 20.4 147
3.6 3.8 153 5.2 6.4 201
AW2030SS 2.8 37.9 74 3.9 56.8 82
3 26.5 96 4.1 45.4 99
3.3 14 119 4.8 18.9 159
3.6 5.7 147 5.5 3 218
AW2040SS 4.1 73.1 292 5.9 91 391
4.8 45.4 362 6.2 80.6 430
5.5 24.6 416 6.6 70 467
6.2 10.6 487 6.9 59.8 490
Temperature:No Drip Wide Angle Round Pattern Spray Nozzles are rated for temperatures up to 204°C.

Please click here to view Droplet Size and Spray Angle information.

Tropffreie innenmischende Zerstäuberdüsen, breiter Austrittswinkel, rundes Sprühbild Leistung
Spray Dimensions
Model Pressure Width Max. Depth m
Air BAR Liquid BAR A B C
cm cm cm
AW6010SS 2.1 1.7 31.8 46 66 5.5
2.8 2.4 33.0 48 66 6.1
4.1 3.8 35.6 48 67 6.7
AW6020SS 0.8 0.3 38.1 50 64 6.7
3.2 1.7 40.6 51 64 10.7
4.1 2.4 38.1 46 56 12.2
5.5 3.8 33.0 43 52 13.7
AW6030SS 0.7 0.3 40.6 53 79 6.1
1.4 1.0 40.6 52 69 6.7
3.0 2.4 33.0 43 56 10.7
4.4 3.8 34.3 43 56 13.4
Flow Rates
l/h = Liter per Hour l/min = Standard Liter per Minute
0.3 BAR Liquid 1.0 BAR Liquid 1.7 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AW6010SS 1.9 125 215
2.1 77 283
AW6020SS 0.69 121 340 1.8 64 617 2.8 229 847
0.83 77 411 2.1 109 725 3.0 154 949
0.97 50 459 2.2 79 784 3.3 100 1082
2.3 59 838 3.4 77 1107
AW6030SS 0.69 118 362 1.2 424 413 1.8 681 481
0.83 70 429 1.4 329 467 2.1 522 583
1.5 273 524 2.5 316 756
1.7 227 578 2.8 232 878
l/h = Liter per Hour l/min = Standard Liter per Minute
2.4 BAR Liquid 3.8 BAR Liquid
Model Air Pressure BAR l/h l/min Air Pressure BAR l/h l/min
AW6010SS 2.8 109 312 4.0 250 331
2.9 68 377 4.1 185 379
4.3 136 476
AW6020SS 3.7 265 1059 5.2 435 1291
4.0 186 1167 5.5 356 1422
4.3 136 1266
4.5 102 1328
AW6030SS 2.5 795 600 3.7 999 799
2.8 670 708 4.3 818 1020
3.3 386 920 4.8 568 1201
3.6 311 1039 5.2 420 1362
