High Lift Chip Trapper™ – Filter chips and solids out of used coolant and liquids from below grade sumps or elevated tanks!

Vacuum in liquid with solids and pump out only the liquid, with 15 feet of lift!

High Lift Chip Trapper

The patented* High Lift Chip Trapper offers a fast, easy way to clean chips, swarf and shavings out of used coolants and other liquids. The High Lift Chip Trapper vacuums the coolant or liquid that is filled with debris and traps all the solids in a reusable filter bag. Only the liquid pumps back out. It is ideal for use on pits, wells, below grade sumps, tanks and storage containers of contaminated liquids.

The High Lift Chip Trapper uses EXAIR’s compressed air powered Reversible Drum Vac (included) that can fill or empty a 55 gallon drum in less than two minutes. Simply set the Reversible Drum Vac pump and directional flow control valve on top of the drum to “fill” for it to quickly vacuum the liquid with solids. Once the sump, pit or tank is empty, set the pump and directional valve to “empty” for it to pump out clean coolant/liquid. All the chips and other solids are trapped inside the reusable filter bag of the High Lift Chip Trapper.

*US-Patent #8153001 and #8268179

High Lift Chip Trapper Function
Pressure Supply Air Consumption Lift Water Flow Rate Sound Level
BAR l/min “H20 mm Hg l/min dBA
5,5 1.218 180 336 114 83
Model Description
6190 55 Gallon High Lift Chip Trapper includes the High Lift Reversible Drum Vac pump assembly, directional flow valve, 55 gallon drum, lever lock drum lid, shutoff valve, 20′ (6,1m) flexible vacuum hose (1-1/2″/38mm I.D.), 20′ (6,1m) compressed air hose, chip wand, (2) filter bags and drum dolly.
6190-30 30 Gallon High Lift Chip Trapper System – same as Model 6190 except includes a 30 gallon drum.
6190-110 110 Gallon High Lift Chip Trapper System – same as Model 6190 except includes a 110 gallon drum.
6095 High Lift Reversible Drum Vac Only – included in all systems listed above.
Model Description
901060-1 Replacement Filter, 1 Micron (µm)
901060 Replacement Filter, 5 Micron (µm)
901060-25/-50/-100/-200 Replacement Filter 25 to 200 Micron are available
6901 Spill Recovery Kit includes a one-piece 54″ (1372mm) ABS wand and 14″ (356mm) double blade squeegee tool
6901 Suction set for Drum-Vac + Chip Trapper + High Lift RDV + High Lift Chip Trapper
901060-SP Filter bag SET Polyester for Chip Trapper 6198
9001 Automatic Water Filter Separator – 3/8 NPT, 1841 std litres/min. (65 SCFM)

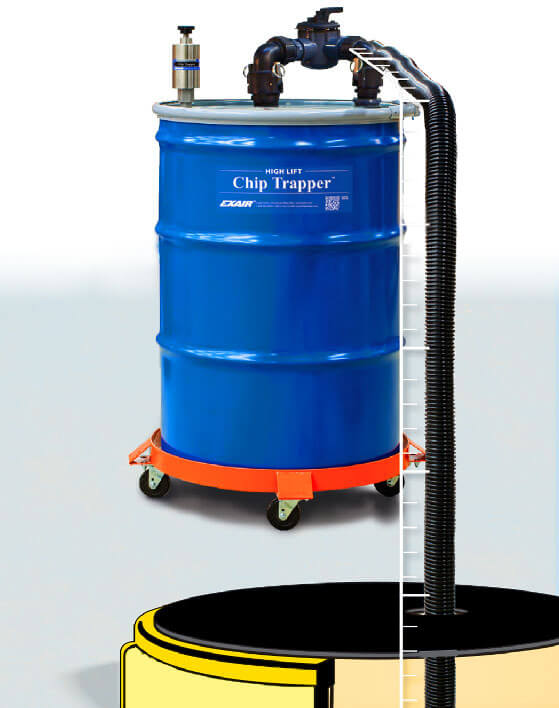

High Lift Chip Trapper

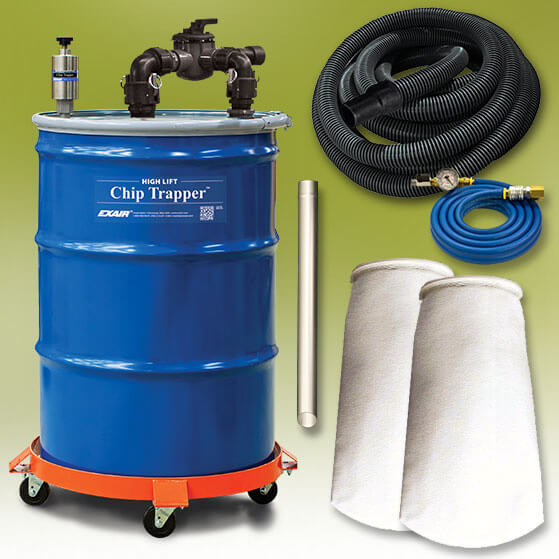

High Lift Chip Trapper System with accessories
