Hochleistungsindustriesauger für Flüssigkeiten

High Lift Reversible Drum Vac for liquids

This high-performance vacuum extractor for liquids can pump 205 litres up to height of 4.50 metres in just 85 seconds! Maximum delivery head thanks to two-way pump. Ideal for extracting liquids from underground work areas, collecting tanks or other tanks. The compressed air-driven High Lift Reversible Drum Vac System by EXAIR can be quickly assembled to any bung barrel (112, 205 or 410 litres).

What is the High Lift Reversible Drum Vac?

A safe, powerful, and maintenance-free way to recover:

  • Coolant
  • Hydraulic oils
  • Liquid spills
  • Sludge and chips
  • Tramp oil
  • Waste water

Like all of EXAIR’s industrial vacuum extractors, this vacuum extractor for liquids does not require electricity and is completely maintenance free as it has no moving parts. The device is designed for high-performance, continuous duty cycle applications where electrical vacuum extractors for liquids fail due to motor wear or clogged impellers. This vacuum extractor for liquids efficiently and safely uses the compressed air on site. An automatic safety shutoff valve prevents the vacuum extractor for liquids from overflowing.

Why The High Lift Reversible Drum Vac?

The compressed air operated High Lift Reversible Drum Vac System attaches quickly to any closed head 30, 55 or 110 gallon drum.

Its high powered vacuum is able to lift liquids up to 15 feet and fill a 55 gallon drum in less than 85 seconds. With the simple turn of a knob, the same stainless steel pump quickly empties the drum. The High Lift Reversible Drum Vac has the extra power you need to move liquids from below grade work areas, sumps or tanks up to 15 feet!

Like all our other industrial vacuums, the High Lift Reversible Drum Vac uses no electricity and has no moving parts which assures maintenance free operation. It is designed for continuous and heavy duty applications where electric vacuums fail due to motor wear or clogged impellers. This vacuum efficiently and safely uses the compressed air in your facility. An automatic safety shutoff valve prevents overfilling.

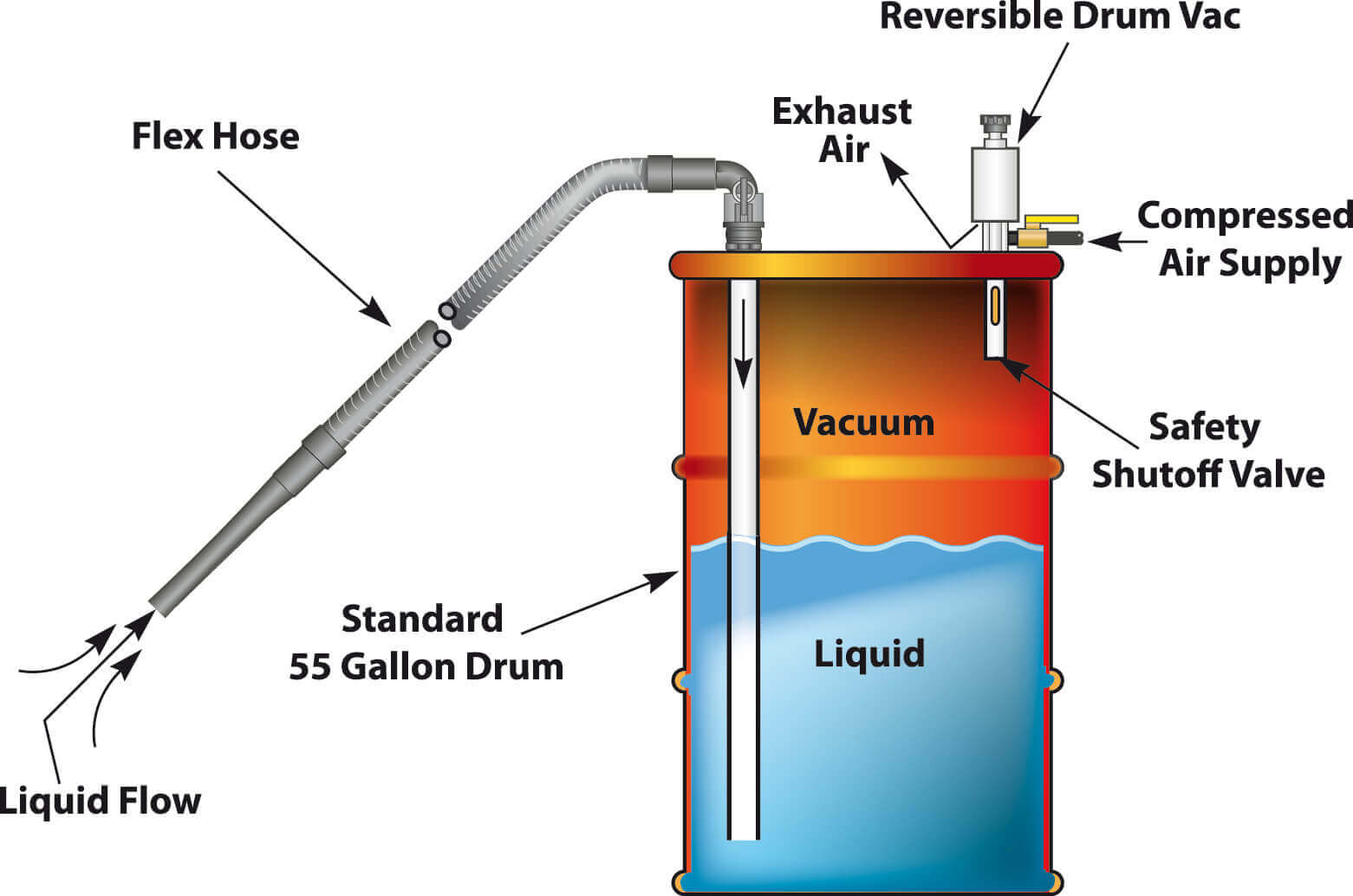

How does the High Lift Reversible Drum Vac works?

Warning: Do not use with any material that has a low flash point or with flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene.

Models & kits

High Lift Reversible Drum Vac System

High Lift Reversible Drum Vac vacuum extractor for liquids

The High Lift Reversible Drum Vac System by EXAIR be attached to any sealed 112/205/410-litre barrel. Its compressed air-driven vacuum will fill a 205-litre barrel in less than two minutes. And by simply turning the button, the same stainless steel pump will empty the barrel again quickly. The high-performance vacuum extractor for liquids does not require electricity and has no moving parts meaning that maintenance free operation is assured. An automatic safety shut-off valve prevents overflowing or overfilling.

Deluxe High Lift Reversible Drum Vac System

Deluxe High Lift Reversible Drum Vac System

The Deluxe barrel vacuum extractor systems have a two-way-pump (1/4 NPT), a shut-off valve, a 3 m flexible suction hose (38 mm inner diameter) with a 90° quick coupling, an aluminium tube, a barrel trolley, an ABS collection set, 2 extension tubes, a grout cleaning tool, a skimmer tool and a toolholder (the barrel is not included in the scope of delivery).

Premium High Lift Reversible Drum Vac System

Premium High Lift Reversible Drum Vac System

In addition to the full feature set of the Deluxe High Lift Reversible Drum Vac System, the Premium System includes a 112, 205 or 410-litre barrel with a matching cover and annular seal, and a 6.1 m compressed air hose.

Typical applications

Flüssigkeitssauger High Lift Reversible Drum Vac™

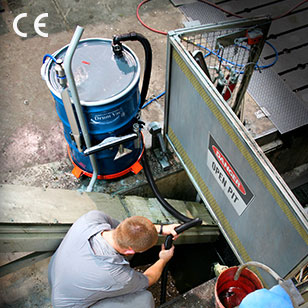

This High Lift Reversible Drum Vac is shown extracting
used coolant from a deep pit.

Flüssigkeitssauger High Lift Reversible Drum Vac™

This High Lift Reversible Drum Vac is shown
emptying a deep well for repairs.

More product information

  • Below grade coolant sumps
  • Deep wells
  • Underground storage tanks
  • Pits
  • Drains
  • Deep hole broaching
  • Bulk storage tanks
  • Cisterns
  • No moving parts
  • Maintenance free
  • Stainless steel construction
  • Safe – no electricity
  • Compact and portable
  • Installs quickly
  • Spill free – auto safety shutoff
  • Fits standard closed head drums
Pressure Supply Air Consumption Lift Water Flow Rate Sound Level
BAR SLPM “H20 mm Hg LPM dBA
5.5 1.238 180 336 114 83
Model Description
6195 55 Gallon High Lift Reversible Drum Vac System includes two-way pump assembly (1/4″ NPT), shutoff valve, 20′ (6,1m) flexible vaccuum hose (1-1/2″/38mm I.D.) with 90 degree quick release elbow connection, (1) aluminum wand (drum not included).
6195-30 30 Gallon High Lift Reversible Drum Vac System – same as Model 6195 except fits a 30 gallon drum (drum not included).
6195-110 110 Gallon High Lift Reversible Drum Vac System – same as Model 6195 except fits a 110 gallon drum (drum not included).
6295 55 Gallon Deluxe High Lift Reversible Drum Vac System – same as Model 6195 and adds drum dolly, ABS spill recovery kit, (2) extension wands, crevice tool, skimmer tool and tool holder (drum not included).
6295-30 30 Gallon Deluxe High Lift Reversible Drum Vac System – same as Model 6295 except fits 30 gallon drum (drum not included).
6395 55 Gallon Premium High Lift Reversible Drum Vac System – same as Model 6195 and adds the 55 gallon drum with lock ring and lid, drum dolly, ABS spill recovery kit, 11″ (279mm) and 24″ (610mm) aluminum crevice tools, skimmer tool, tool holder and 20′ (6,1m) air hose.
6395-30 30 Gallon Premium High Lift Reversible Drum Vac System – same as Model 6395 except includes a 30 gallon drum
6395-110 110 Gallon Premium High Lift Reversible Drum Vac System same as Model 6395 except includes a 110 gallon drum
6095 High Lift Reversible Drum Vac Only – included in all systems listed above
Accessories

Model Description
6569-20 6,10 m hose, 38 mm (1-1/2″) ID
901071 Heavy Duty Aluminum Tools plus Tool Holder
901176 Tool Holder
9041 55 Gallon Drum Dolly
9041-5/-30/-110 Drum Dolly for 5/30/110 Gallon
6901 Spill Recovery Kit includes a one-piece 54″ (1372mm) ABS wand and 14″ (356mm) double blade squeegee tool
xxxx For Filters and Separators please contact us
High Lift Reversible Drum Vac Modell 6195

High Lift Reversible Drum Vac Model 6195 includes a two-way pump
(1/4″ NPT), a vacuum hose and an aluminum wand.

Deluxe High Lift Reversible Drum Vac

Deluxe High Lift Reversible Drum Vac Model 6295 and 6295-30 include a drum dolly,
ABS spill recovery kit, vacuum hose, tool holder and all tools.
