Machine safety guards for grinders

Grinders or grinding machines are dangerous machines. Safety Guards for grinding machines are made of tough materials and withstand rough industrial environments. Safeguards for grinders can protect the worker against dust, sparks and chips. We offer the wide range of manufacturer REPAR2.
We are looking forward to advise you! Please use our contact form for your inquiry.

SPIDER50 - Safety Belt Sander

Safety Belt Sander for lathes SPIDER 50

Model No. MOW-23-22-01

An interesting tool for sanding and finishing parts easily and safely on conventional lathes. Conceived in accordance with ISO23125 Standards 6.2.1 (no use of hands during working operations). No more need to make by hand dangerous sanding operations with risk of serious accidents. Simple fitting of the tool on the lathe turret body. Easy sanding of bars of different diameters and shapes owing to the tool conception and the tensions springs. The sanding belt is rotated easily by means of knurled cylinders in order to guarantee the best working conditions. Available in two sizes: SPIDER 50 – A = 900x50mm Max. D-150mm SPIDER 75 – A = 1100x75mm Max. D-250mm Supplied with 3 standard sand belts (roughness 80 – 120 – 220).

Dimensions and Technical Data

Safety Guard for big Off-hand grinders M03/L

Safety Guard for big Off-hand grinders M03/L CM 300 x 350 mm with LED-lamp

Model No. MOW-27

This Safeguard consists of a high resistant and ecological painting steel frame. The Safety Guard for grinders has an easily adjustable double friction joint.
Screen of laminated glass 3+3mm; Dimensions: 280mm x 255mm
Complete with microswitch IP67 2NC + 1 NO located in the box base used for front and side mounting.
180° screen rotation. Operator´s face and hands will be protect from direct contact with rotating abrasive wheel and metal parts. Equipped with LED-lamp 24V 20W with on-off switch.

Dimensions and Technical Data

Safety Guards for grinders MO/1 with screen 140 x 132 mm

Safety Guards for Off-hand grinders MO/1 with screen 132 x 140mm

Model No. MOW-25

Safeguard for Off-hand grinders provided with clutch. This Safety Guard for grinders is easy to install by swiveling mounting bracket. It consists of aluminium frame with polycarbonate screen. Screen size 130x130mm.

Dimensions and Technical Data

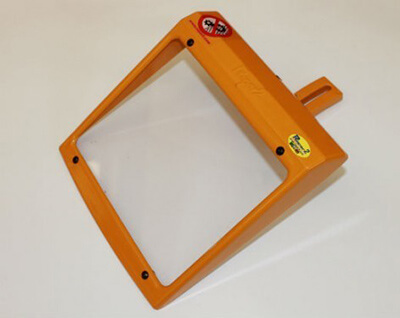

Safety Guard for grinders MO/2 with screen 193 x 170 mm

Safety Guard for Off-hand grinders MO/2 with screen 170 x 193mm

Model No. MOW-26

This Safety Guard is the same type of guard as MO/1 except a larger shield size. Provided witch clutch, easy to install by mounting bracket, consists of aluminium frame with polycarbonate screen (size 140x180mm).

Dimensions and Technical Data

Safety Guard for gridners MO/2-Glass with screen 193 x 170 mm and LED lamp

Safety Guard for grinders MO/2-glass with screen 170 x 193 mm and LED lamp

Model No. MOW-26-41

Safety Guard for grinders. The same Model as MO/2 but with LED kamp 24 AC/DC and laminated glass.

Dimensions and Technical Datas

Safety Guard for big grinders with double glass screen MO/2 190 x 180 mm, microswitch; LED

Safety Guard for big grinding machines with double glass screen MO/2 190 x 180 mm, microswitch; LED-lamp

Model No. MOW-26-42

This grinding machine safety guard consists of aluminium frame with clutch and two screens of laminated glass (screen size 140x180mm), complete with microswitch and LED-lamp. Easy to install.

Dimensions and Technical Data

Schutzeinrichtung für große Schleifmaschinen mit 2 Glasschirmen MO/2 190 x 180 mm mit Sicherheitsschalter

Safety Guard for big grinders MO/2 190 x 180 mm with microswitch without LED-lamp

Model No. MOW-26-45

This Safety Guard for grinders consists of aluminium frame with clutch and two screens of laminated glass (screen size 140x180mm), complete with microswitch but without LED-lamp. Easy to install.

Dimensions and Technical Data

Safeguard for grinders with double screen MO/2 190 x 180 mm with microswitch

Grinding machines safety guard with double screen MO/2 190 x 180 mm with microswitch

Model No. MOW-26-44

This Safety Guard for grinding machines consists of aluminium frame with clutch and two screens of polycarbonate (screen size 140x180mm), complete with microswitch. Easy to install.

Dimensions and Technical Data

Safeguard for grinders MO/2-glass with screen 193 x 170 mm

Safety Guard for grinders MO/2-glass screen 170 x 193 mm

Model No. MOW-26-43

Safeguard for grinders, provided with clutch, easy to install, consists of aluminium frame with glass screen (size 140x180mm).

Dimensions and Technical Data
